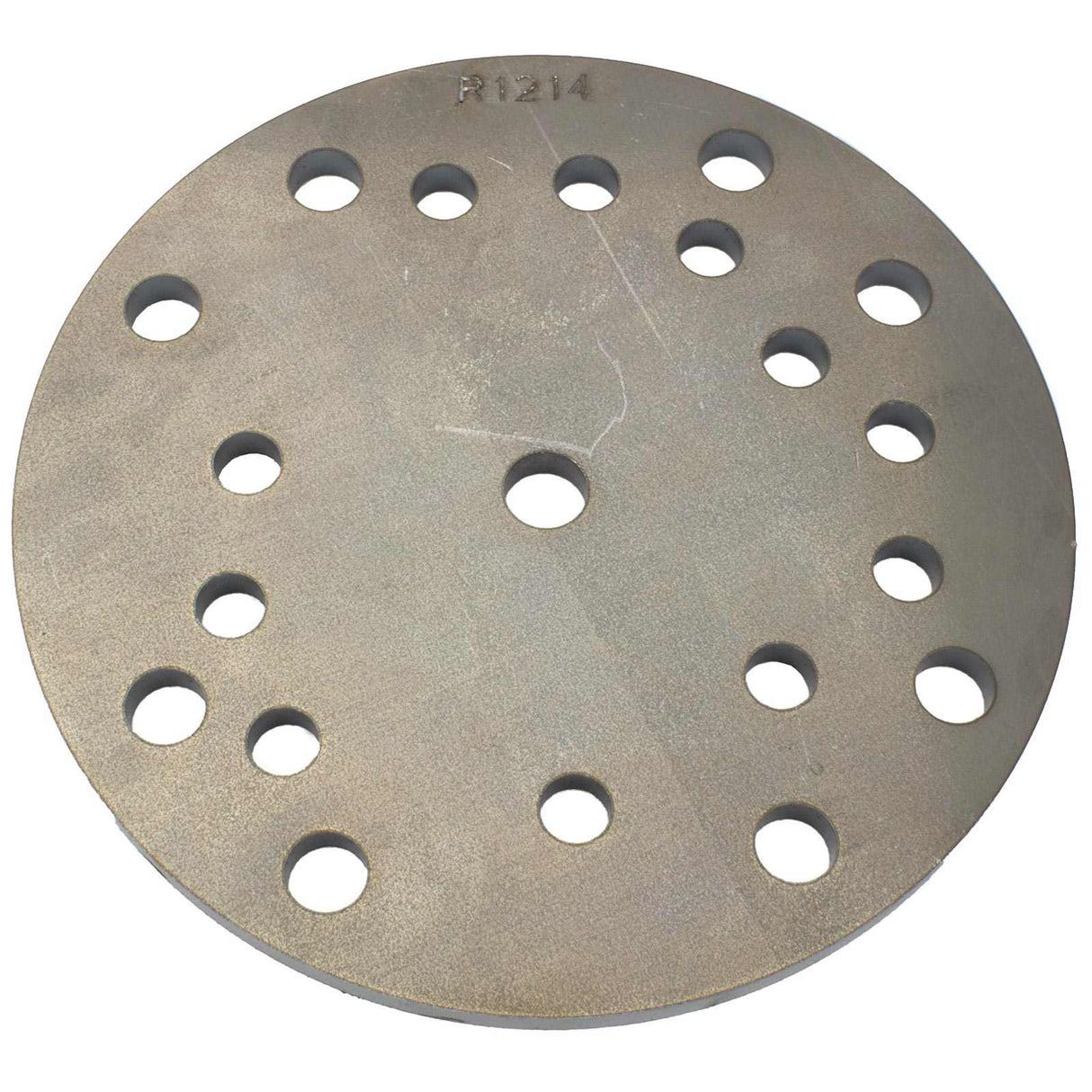

Spare Tire Mounting Plate Multi-pattern
This is not your plain Jane Spare Tire Mounting Plate, it is the leader of the pack in the spare tire world! It is laser cut from 3/8" plate and fits 13 different lug patterns between two different plates (part numbers listed below to choose the plate you need). There is a 5/8" hole in the center that can be used to locate the plate and as a plug weld location. These need to be welded on- do not use a single 5/8" bolt to mount it!
All patterns are centered on the plate and utilize at least half of the wheel's mounting holes. The patterns have 1/2", 9/16", 12mm and 14mm holes depending on which one you choose. This allows you to mount the spare to the plate using inexpensive grade 8 bolts or drill them out and use studs if you prefer.
NOTE: SOLD INDIVIDUALLY

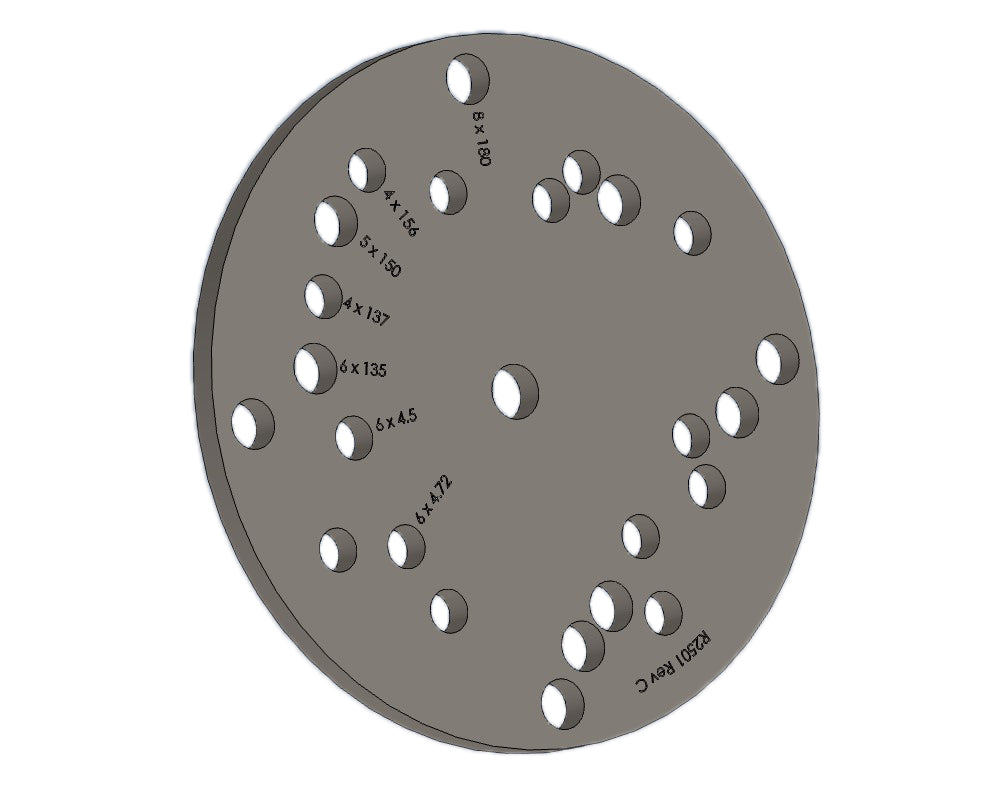

| Part# | Description | Bolt Pattern Inches | Bolt Pattern MM | Hole Size in Plate |
| R2501 | Can-Am | 4 x 5.39" | 4 x 137 | 12mm |
| R2501 | Polaris | 4 x 6.14" | 4 x 156 | 12mm |
| R1214-01 | Jeep YJ, TJ, LJ, XJ, MJ, and ZJ | 5 x 4.5" | 5 x 114.3 | 1/2" |
| R1214-01 | Jeep JK, JL, JT, WJ, and WK | 5 x 5" | 5 x 127 | 1/2" |
| R1214-01 | Jeep CJ and pre 1973 Wagoneer | 5 x 5.5" | 5 x 139.7 | 1/2" |
| R2501 | Toyota Tundra/ Sequoia | 5 x 5.9" | 5 x 150 | 14mm |
| R2501 | Chevy Colorado/Canyon (2014 and newer holes need to drilled to 14mm) | 6 x 4.72" | 6 x 120 | 12mm |
| R2501 | 04 and newer Ford F-150 and Expedition | 6 x 5.31" | 6 x 135 | 14mm |
| R1214-01 | Standard Chevy / Toyota / Nissan 6 Lugs | 6 x 5.5" | 6 x 139.7 | 1/2" |
| R1214-01 | Ford, GM, and Dodge full size trucks and SUVs | 8 x 6.5" | 8 x 165.1 | 9/16" |
| R1214-01 | 99 and newer Ford Super Duty trucks | 8 x 6.69" | 8 x 170 | 9/16" |
| R2501 | Newer GM Full Size Metric Pattern | 8 x 7.09" | 8 x 180 | 14mm |
