Ruffstuff 1.75" OD Tube Clamp

Ruffstuff 1.75" OD Tube Clamp - On Clearance Until Supplies Last!

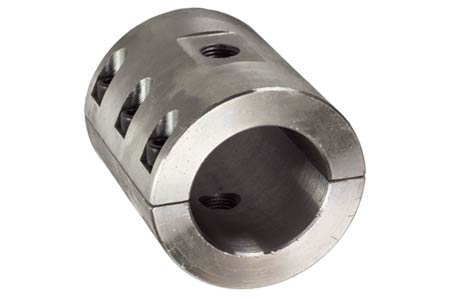

Heavy-duty tube clamp for secure mounting and removable applications.

This 6-bolt tube clamp is designed for 1.75" outside diameter tubing and provides a reliable solution for creating removable racks, engine braces, and mounting tabs. Built from high-strength 1/2" wall D.O.M. tubing with precision-machined bolt holes, it delivers the durability needed for demanding off-road and fabrication applications.

The clamp features a split design that allows for easy installation around existing tube structures without disassembly. Uses 1/4" allen head bolts for secure clamping force and includes all necessary hardware except the stabilizer mounting bolt (1/2x20TPI not included).

Key Features

• Part Number: R1696
• Fitment: Universal 1.75" OD tube applications
• Material: 1/2" wall D.O.M. steel construction
• Dimensions: 1.75" inside diameter, 6-bolt pattern
• Design: Split clamp design for easy installation around existing tubes

What's Included

• 1x Tube Clamp for 1.75" OD tube
• 6x 1/4" Allen Head Bolts
• Hardware: Grade 8 bolts with black oxide finish

Notes

• Clamp bolt torque specification: 8-10 ft-lbs
• 1/2x20TPI stabilizer mounting bolt sold separately
• Sold individually - order quantity needed for your application
