Ruffstuff 1.50" OD Steering Tube Clamp

Part Number: R1697-Kit-2
Shipping Weight: 2.4 lb
$35.00
Shipping calculated at checkout.
Add Stabilizer Mounting Hardware

Description

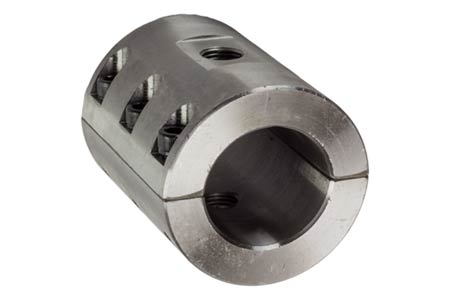

Ruffstuff 1.50" OD Steering Tube Clamp

Heavy-duty 6-bolt clamp for secure mounting on 1.5" OD tubes.

This tube clamp is perfect for mounting steering stabilizers to our steering kits, creating removable racks, engine braces, or any application requiring a removable tab or bracket. Built to handle serious loads, this clamp has been tested up to 12,000 lbs before slipping on the tube, making it ideal for demanding off-road builds.

Made from 1/2" wall DOM tube with a 1.5" ID and 2.5" OD design. Uses 1/4" allen head bolts for secure clamping. Clamp bolt torque specification is 8-10 ft-lbs. Note: 1/2x20TPI stabilizer mounting bolt not included.

Key Features

  • Part Number: R1697
  • Fitment: Universal - fits 1.5" OD tubes
  • Material: 1/2" wall DOM steel construction
  • Dimensions: 1.5" ID, 2.5" OD, 6-bolt design
  • Special features: Tested to 12,000 lbs, removable mounting solution

What's Included

  • 1x 6-bolt tube clamp
  • 1/4" allen head bolts (qty as needed)

Notes

  • Do not use 1/2" threaded bolt for Hydro Assist Steering applications
  • Weld additional tabs for double shear when using with hydro assist mounting
  • 1/2x20TPI stabilizer mounting bolt sold separately

Start your selection

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
J
John O'Day
Burly Steering Mount

Super strong steering / stabilizer mount that works great with the Ruffstuff heavy duty JK 1.5" aluminum tie rod kit. Used this to replace my flimsy stock steering stabilizer mount that was already bent like a pretzel. This mount could be even better if it had a welded threaded stud already installed, but fairly easy to modify on your own.

D
Dustin Good
Awesome Steering Camp

These are super heavy duty, excellent quality, and fairly inexpensive. Well worth it!

p
paden saracino
It's got the weight!

This tube clamp works perfect for my hydro assist steering. The shipping was quick, ordering couldn't have been easier. This is a must have.

A
Adam James
Beefy!

I ordered 7 of these to connect my roll cage, and lemme tell ya this, these things are strong. Just holding them in your hand you can tell right away. But bolt even just one to connect my roll cage and you can see and feel the difference! Great. Product.

G
Gerald Rife
Beefy yet sexy

I ordered these as steering stabilizer clamps for my 1.50 DOM high steer kit. I was not disappointed. Very precise machine finishing and super thick side wall make these clamps a strong point on any tube on your jeep.
