1/2" Threaded Weld Washer - 10 Pack

Part Number: R1746-Kit-1
Shipping Weight: 0.7 lb
$31.00
Shipping calculated at checkout.

Description

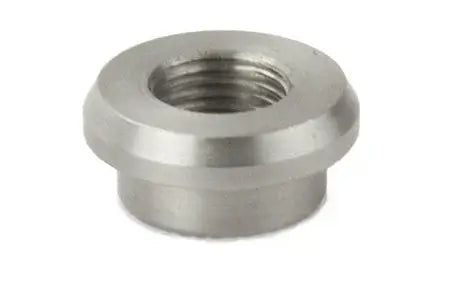

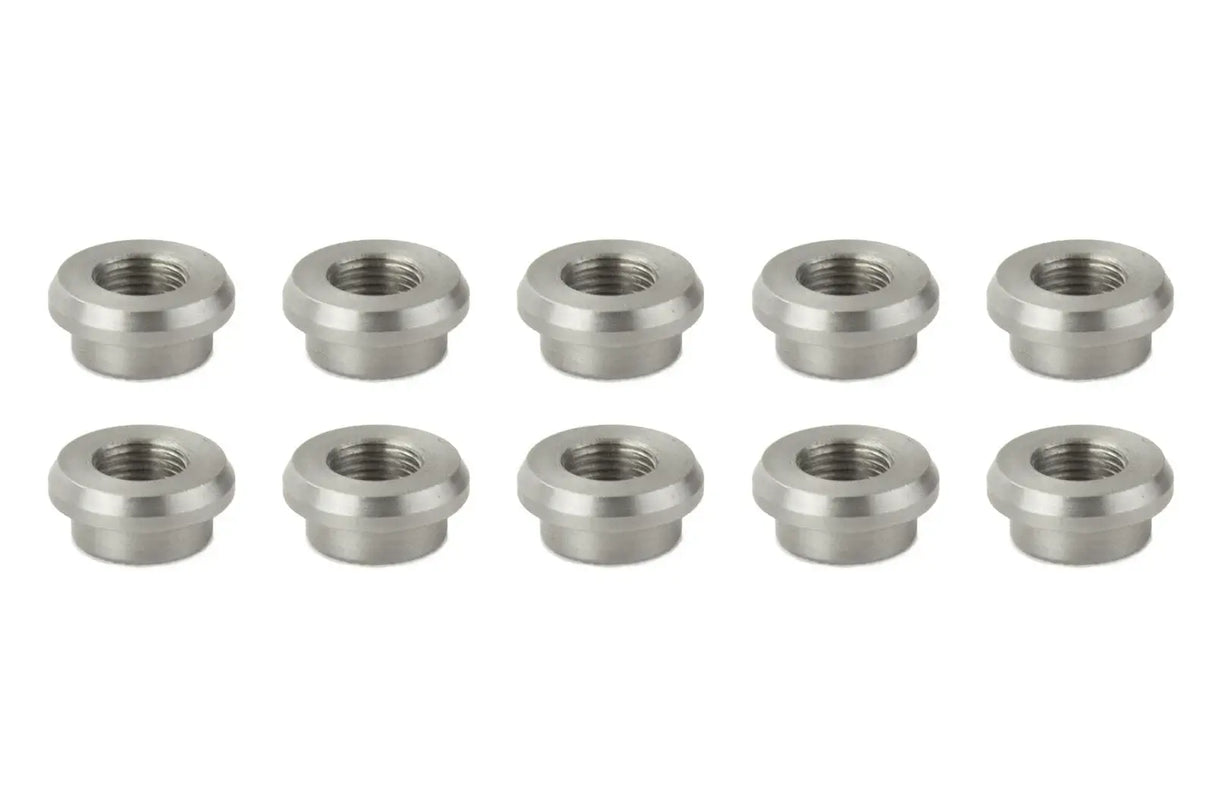

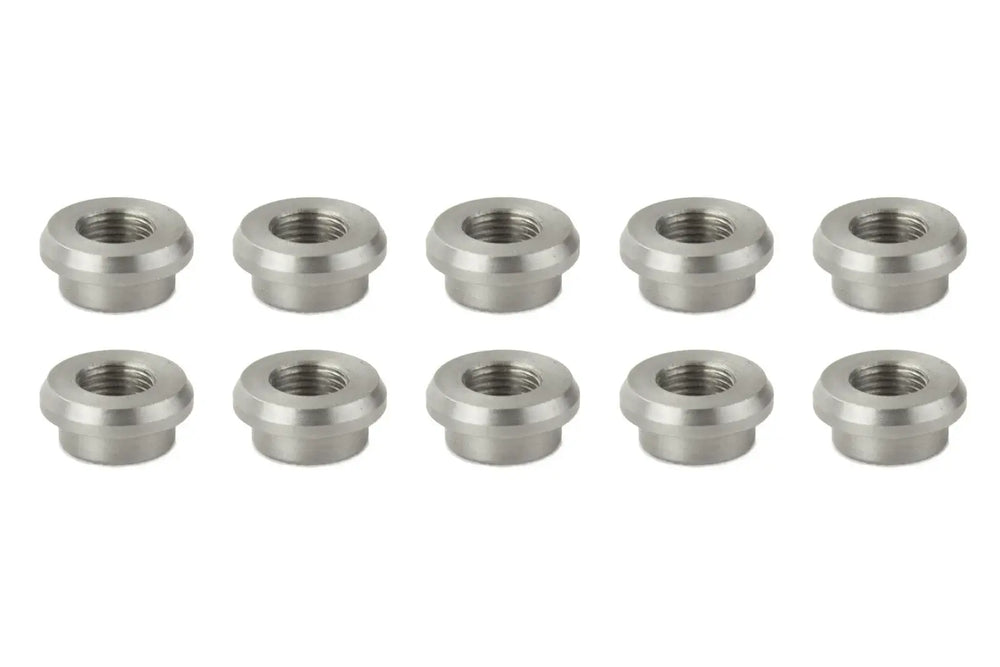

1/2" Threaded Weld Washer – 10 Pack

Create Strong, Bolt-On Mounting Points in Tube or Plate – No Tapping Required

This is our third-gen design weld washer, built specifically for adding clean, threaded holes to thin wall tubing or flat plate — without the hassle of tapping. Whether you're mounting accessories, panels, or brackets, this is the right way to do it.

If you’ve ever tried tapping .120" wall tubing, you already know it doesn’t leave enough thread depth for reliable fastening. These 1/2"-20 fine thread weld-in washers solve that problem. Just drill a 3/4" hole, drop in the washer, weld it, and you’ve got a durable threaded connection that’s stronger, faster, and cleaner than tapping.

Great for bumpers, rock sliders, armor, cages, and chassis work. They’re especially useful when working with 1-1/4" OD or larger tubing and flat surfaces where bolt-on functionality is key.

Key Features:

  • Part Number: R1746
  • Thread Size: 1/2"-20 fine thread
  • Outer Diameter: Fits 3/4" drilled holes
  • Material: Precision-machined mild steel
  • Install Method: Weld-in — no tapping required
  • Ideal For: .120 wall tube, flat plate, or box tubing
  • Application: Fabrication, skid plates, rock sliders, body panels, brackets, UTVs, Jeeps
  • Made in the USA
  • Sold as a 10-pack
