Simple Traction Bar Kit

Simple Traction Bar Kit

Eliminate axle wrap and wheel hop while keeping full articulation and ground clearance.

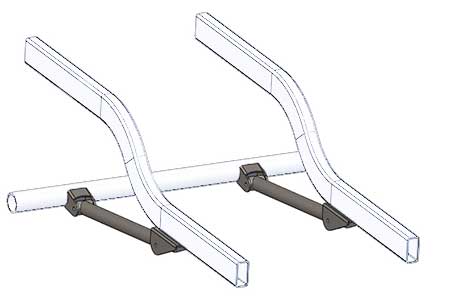

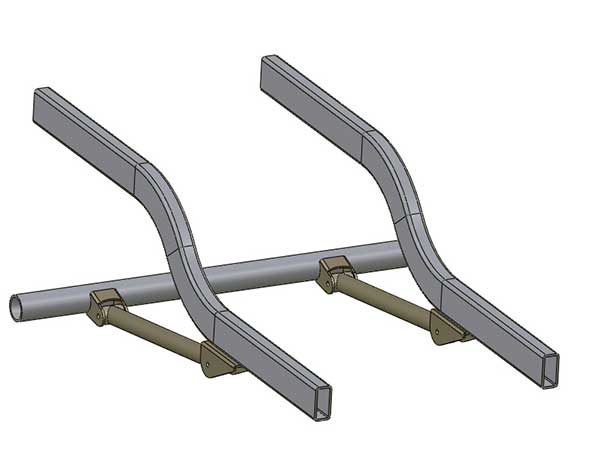

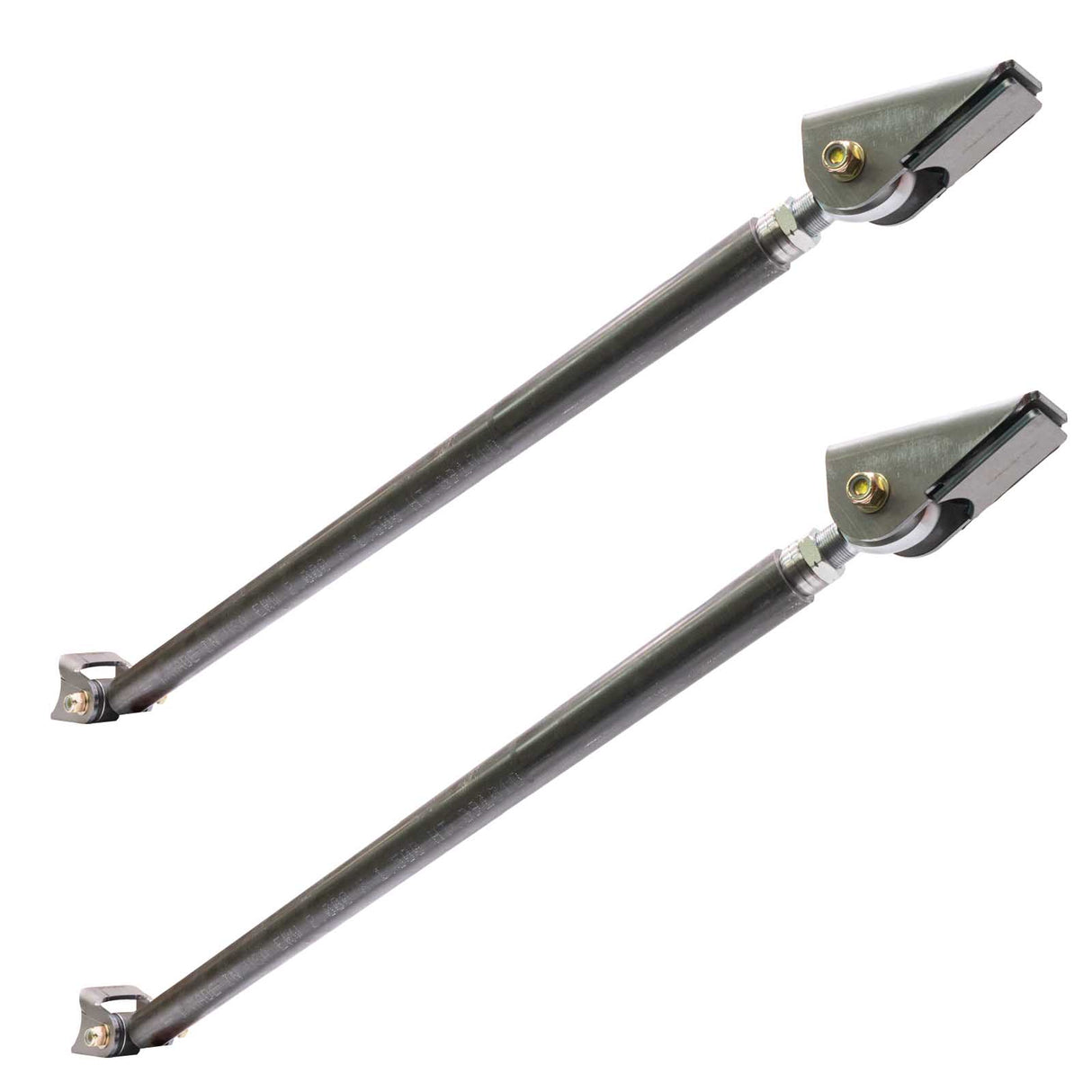

This kit is designed for full-size trucks running big power and lift. It uses a pair of traction bar arms to firmly locate the rear axle, preventing wheel hop and axle wander under heavy torque — whether in sand, dirt, or on pavement. The design plants the tires without sacrificing articulation or clearance, making it ideal for hard trail use, towing, or high-horsepower street rigs. Available with 48", 60", or 72" DOM tubing lengths to fit your application.

Each kit comes complete with brackets, bushings, heims, tubing, and hardware for one rear axle. The combination of heavy-wall DOM tubing, heat-treated heims, and bushed sleeves makes for a durable setup that can handle repeated abuse while still cycling smoothly. It’s a straightforward solution to put power down reliably without stressing your drivetrain or suspension.

Key Features

• R1887
• Fits full-size trucks with lifted rear suspensions
• Eliminates axle wrap and wheel hop
• Maintains axle articulation and ground clearance
• DOM tubing available in 48", 60", or 72" lengths
• Heavy-duty brackets, heims, and bushings included

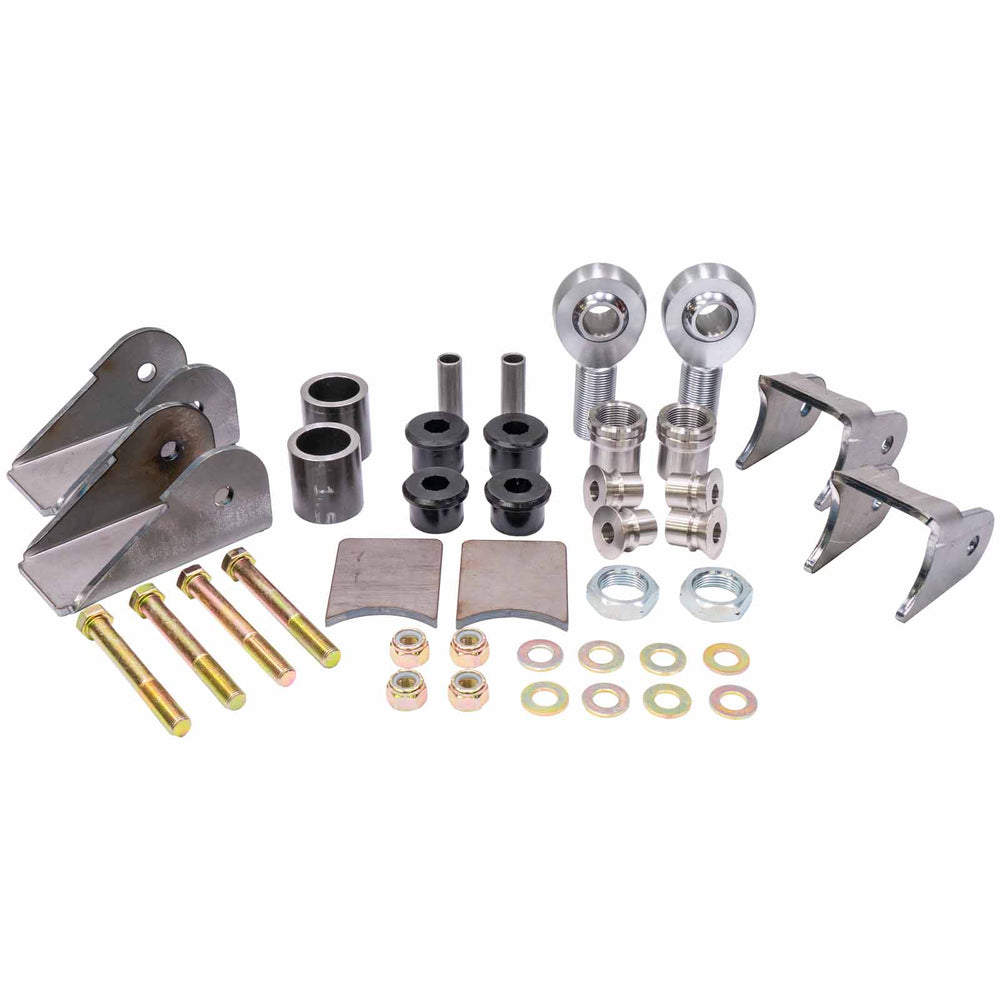

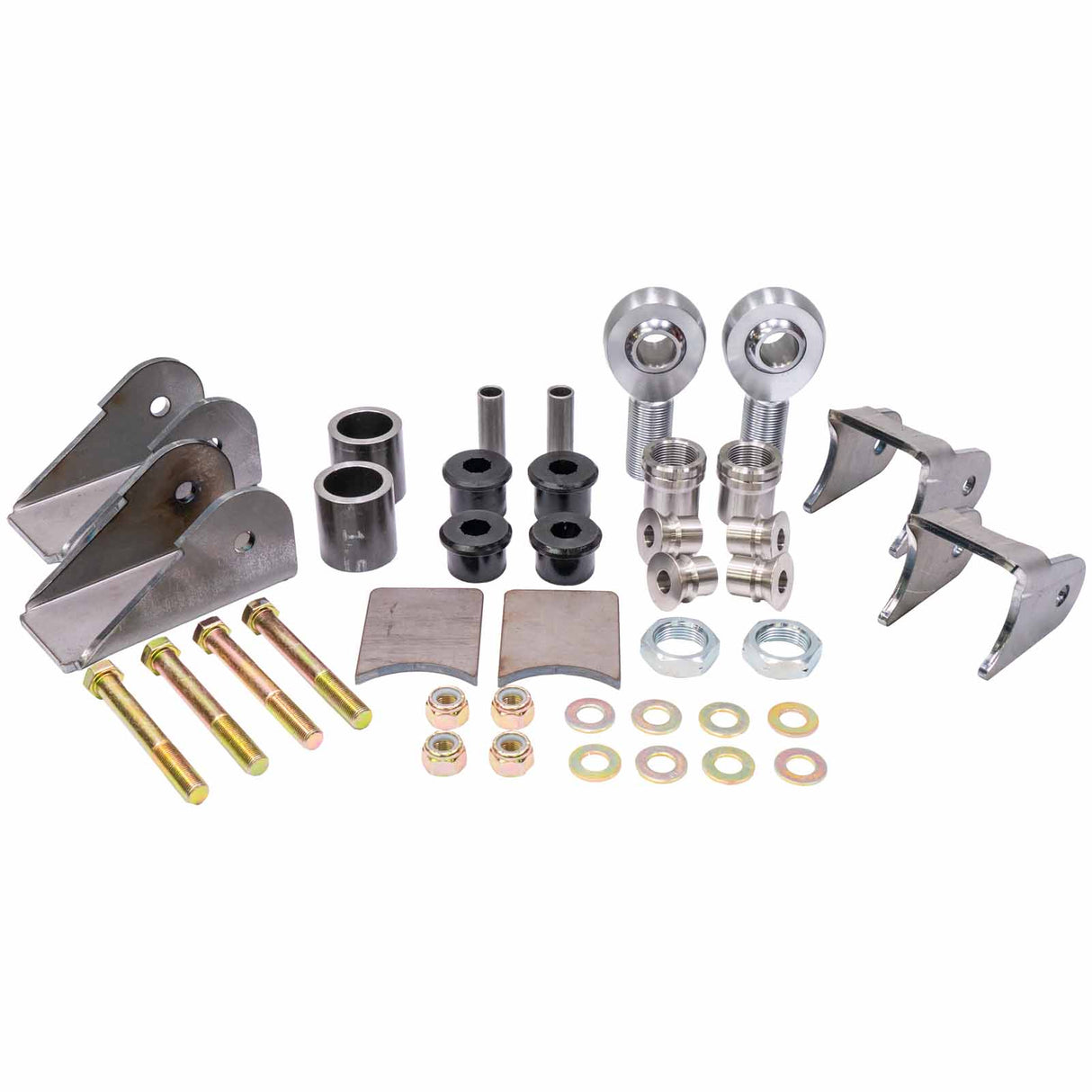

Kit Includes

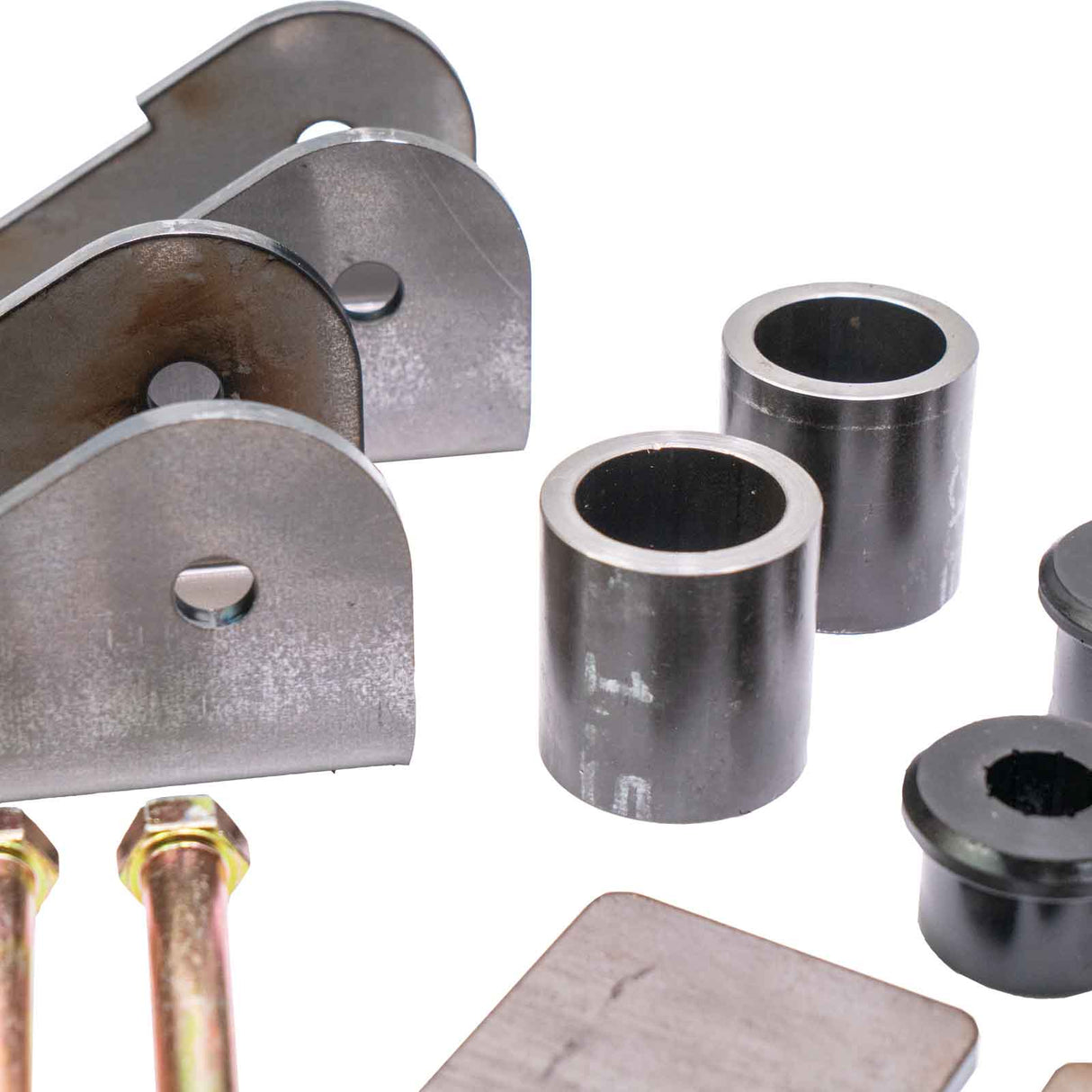

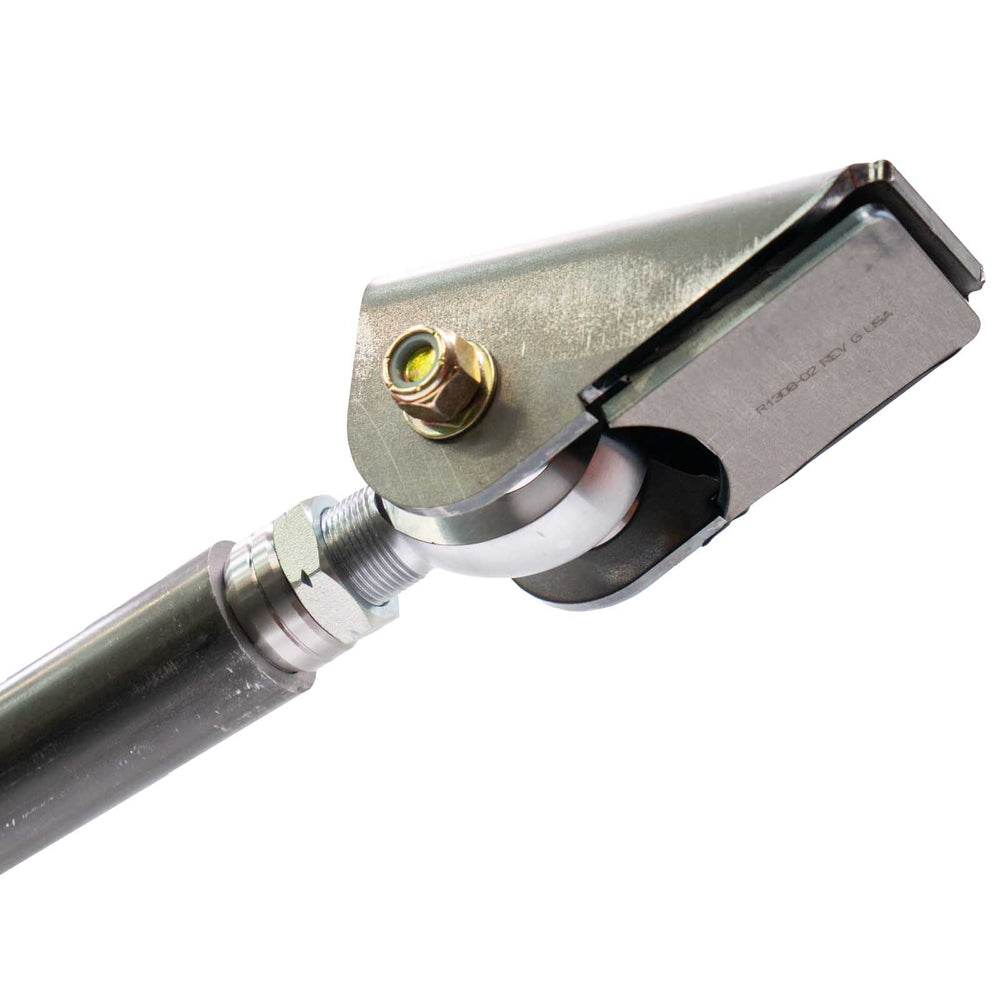

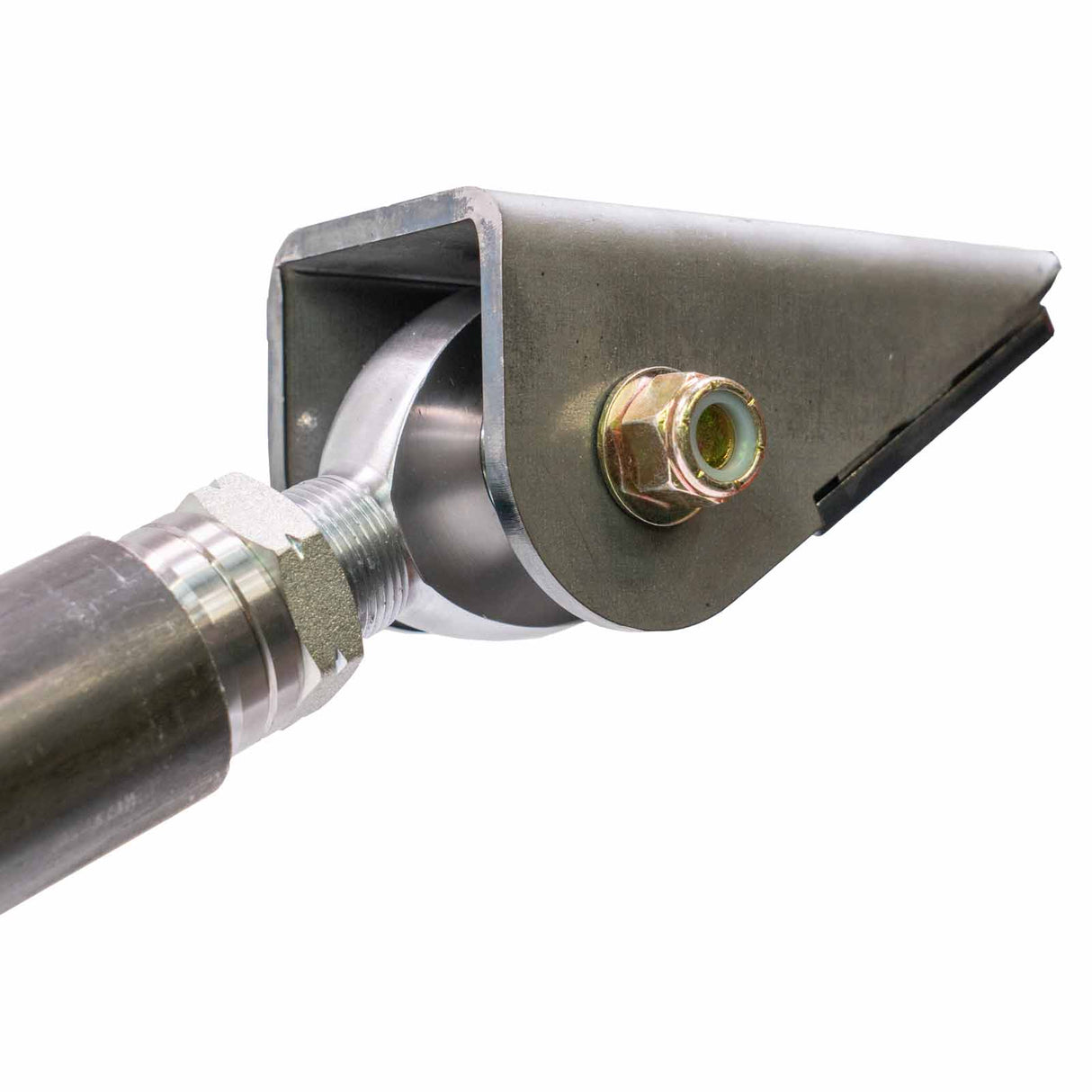

• 1 pair chassis link brackets

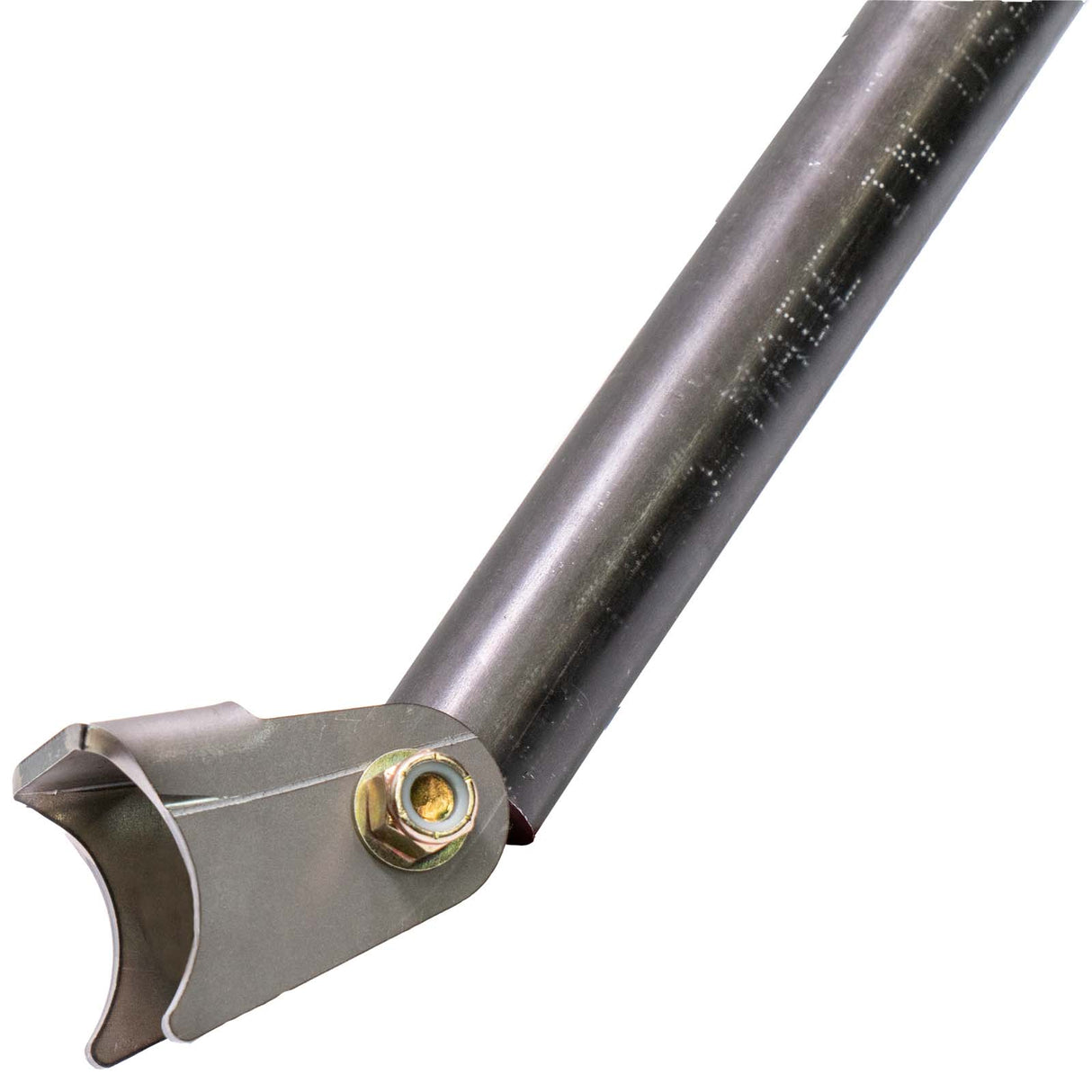

• 1 pair 3" axle mount link brackets

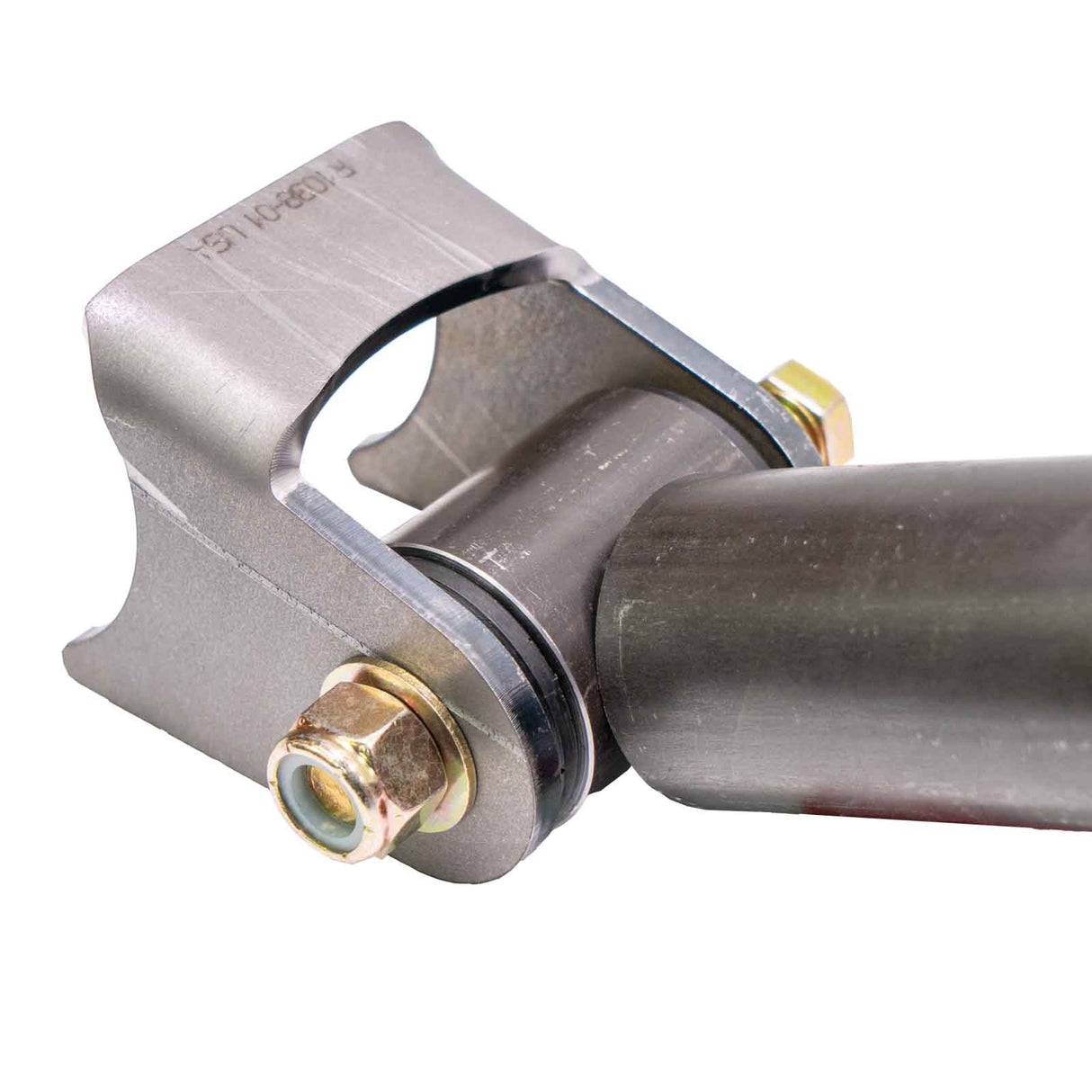

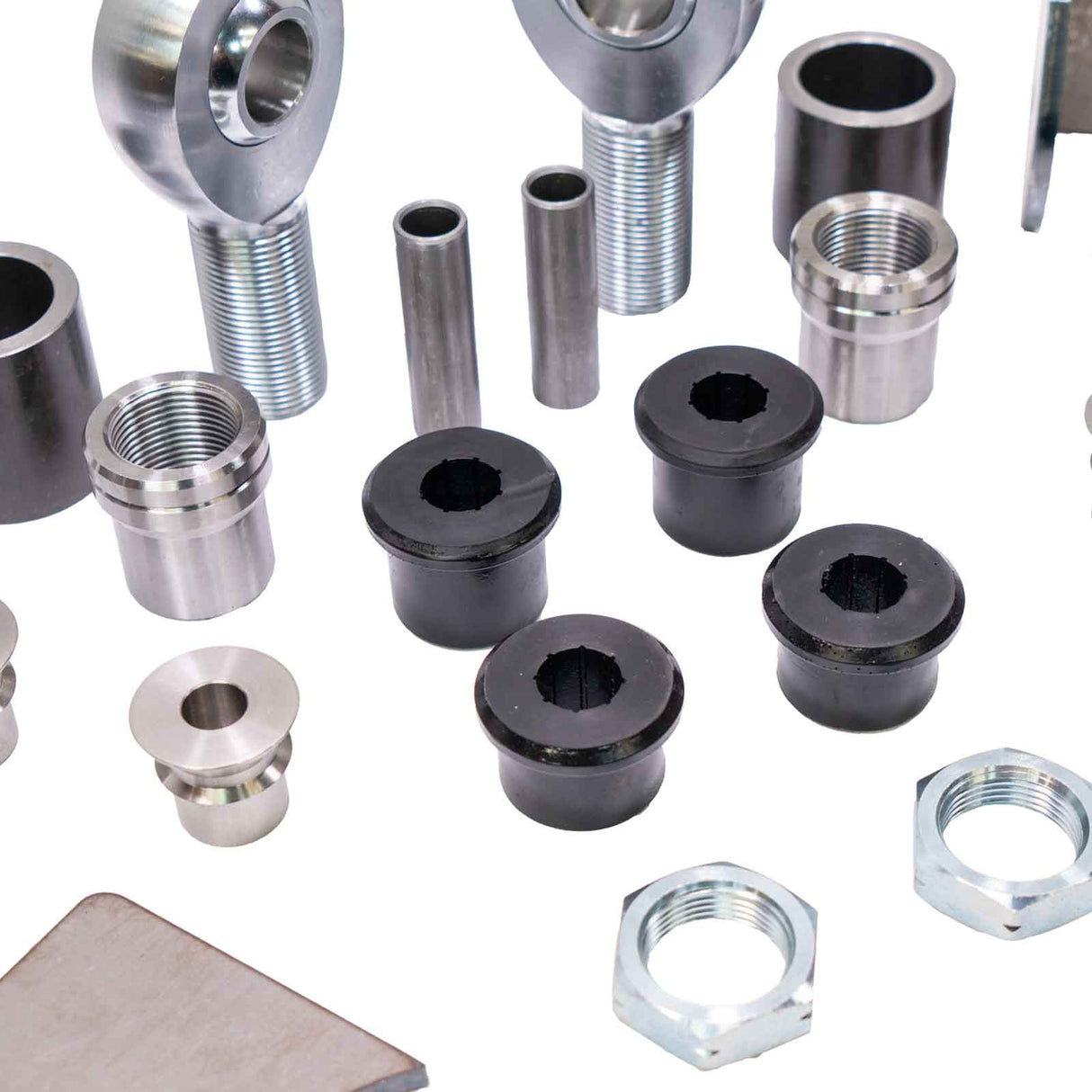

• 2 bushed DOM sleeves (2-5/8" wide, 9/16" bolt)

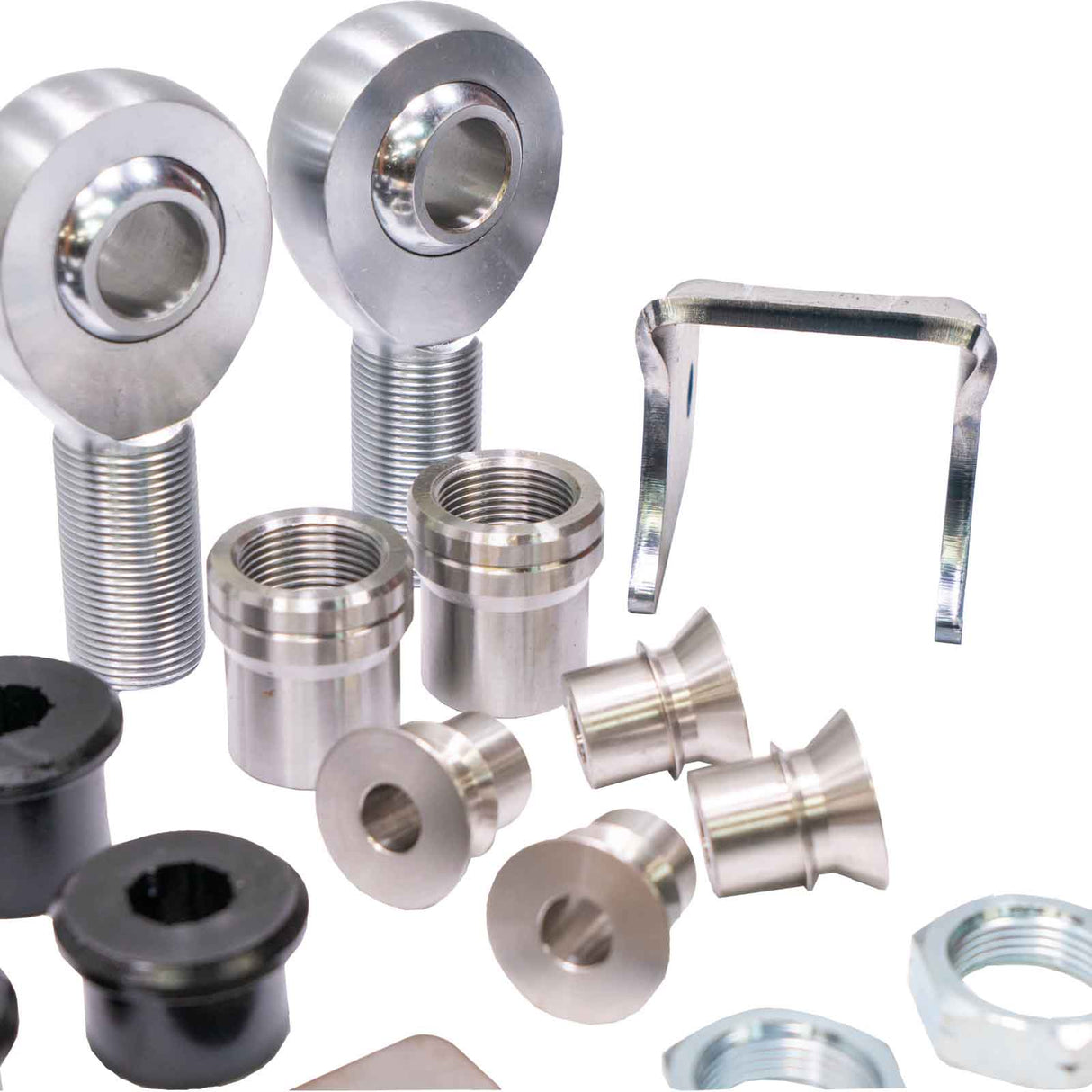

• 2 heat-treated 1.25" heims with 9/16" misalignment spacers

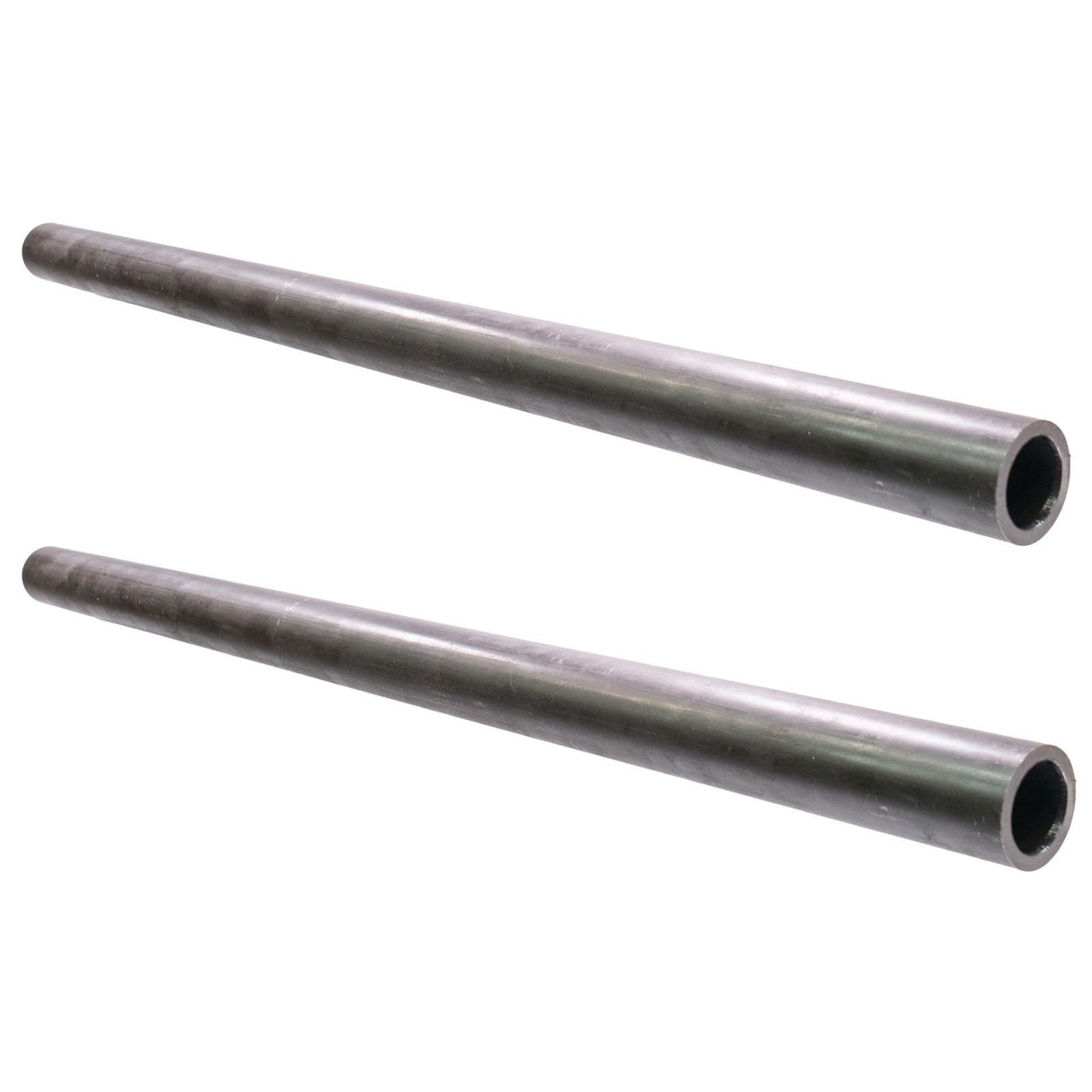

• 2 DOM tubes (2" x .250 wall) in chosen length
• 4 grade 8 bolts (9/16" x 4.5")

Available Kit Options
