3/4" Rod End Kit

3/4" Rod End Kit

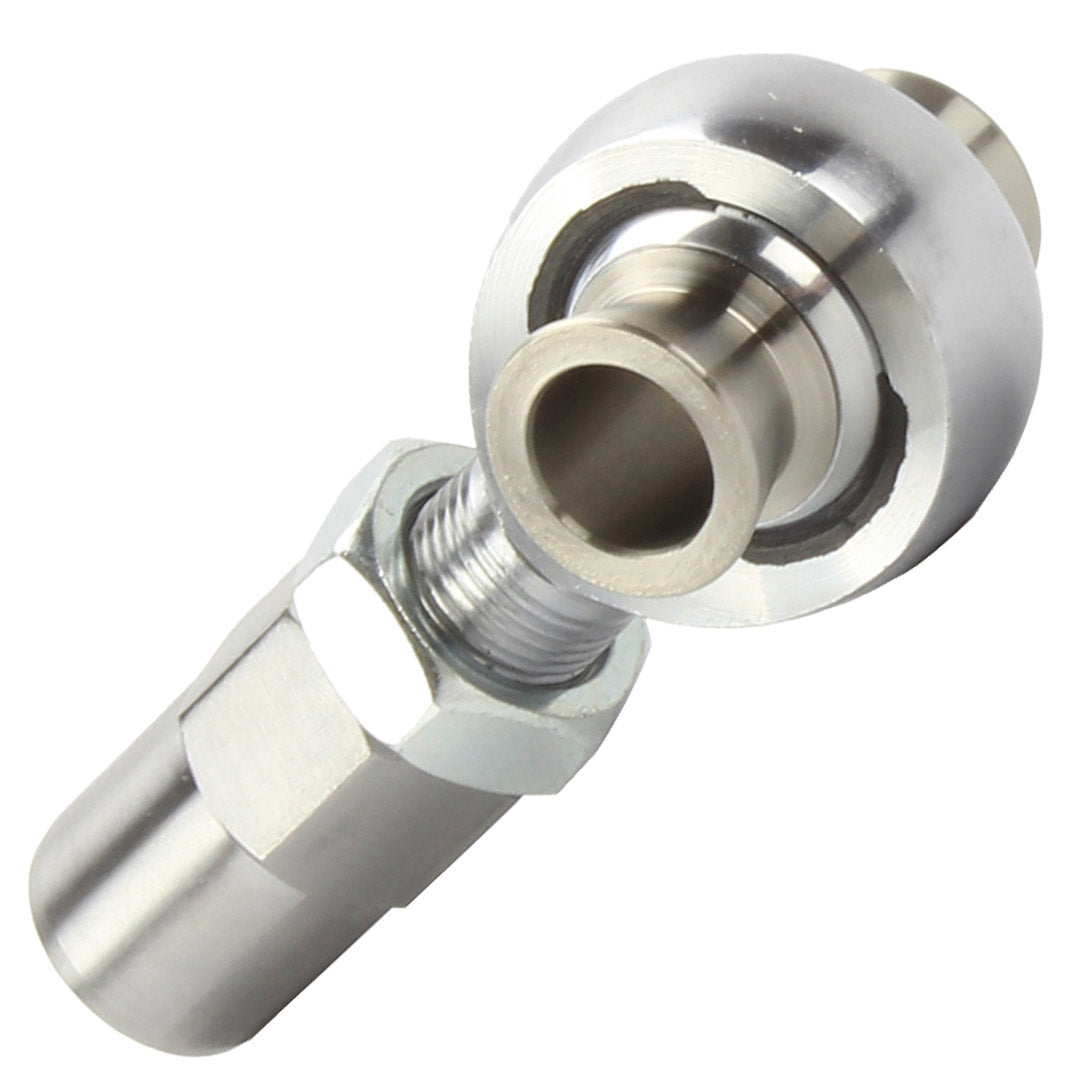

Complete Heim joint package for custom steering and suspension

This kit is everything you need to run a strong and reliable 3/4" rod end in your steering, suspension, or link setup. Built around a heat-treated chromoly 3/4" x 3/4" Heim joint, it includes all the essentials to get your setup dialed—plus a variety of options so you can match the kit to your exact needs. Whether you’re chasing high articulation or a specific bracket width, this kit can handle it. Perfect for rock crawlers, trail rigs, or custom builds needing compact strength and flexibility.

Key Features

• Part Number: R2076
• Includes left or right-hand thread chromoly rod end (3/4" x 3/4" bore)
• Thread Direction Options: Left-Hand or Right-Hand
• High-strength weld-in tube adapter fits 1" ID tubing
• Jam nut included for secure preloading and thread locking
• Multiple misalignment spacer options for tuning width and angle
• Built for off-road, race, or heavy-duty fab applications
• Made in the USA

What's Included in This Kit

• 1 - 3/4" x 3/4" Bore Heat-Treated Chromoly Heim Joint
• 1 - 3/4" Weld-in Tube Adapter (fits 1" ID tubing)
• 1 - 3/4" Jam Nut (choose LH or RH thread)
• 2 - Stainless Steel Misalignment Spacers (select from options below)

Available Kit Options

Misalignment Spacer Options:
3/4" - 5/8" Stainless Steel Safety
3/4" - 1/2" Stainless Steel
3/4" - 5/8" Stainless Steel
3/4" - 9/16" Stainless Steel
3/4" - 5/8" Wide Stainless Steel (2 5/8" mounting width)
3/4" Stainless Spacer (Standard 2" mounting width)
3/4" - 9/16" Wide Stainless Steel
3/4" - 5/8" Narrow Stainless Steel

Rod End Maintenance Tip

Always lubricate rod ends with Tri-Flow only. Using WD-40, Blaster, or similar petroleum-based products will degrade the liner and void the warranty.

Welding Tip

• Do not weld with the rod end threaded into the adapter.
• Start your weld puddle on the tube, not the adapter.
• Allow the adapter to fully cool before threading in your Heim joint.
