3" Wide Spring Perches for 3.5" Axle Tubes

3" Wide Spring Perches for 3.5" Axle Tubes

Heavy-duty spring perches with extra length and adjustability

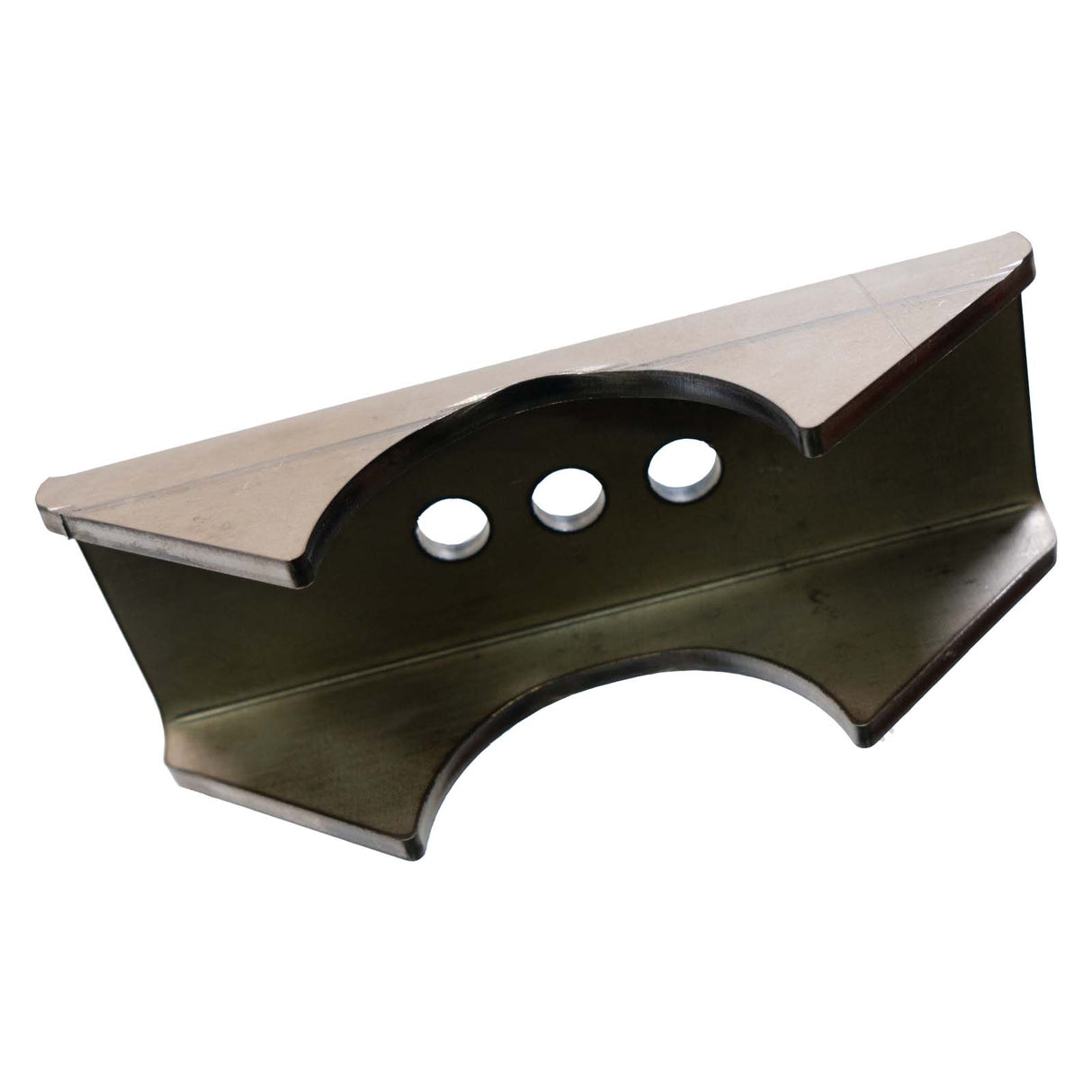

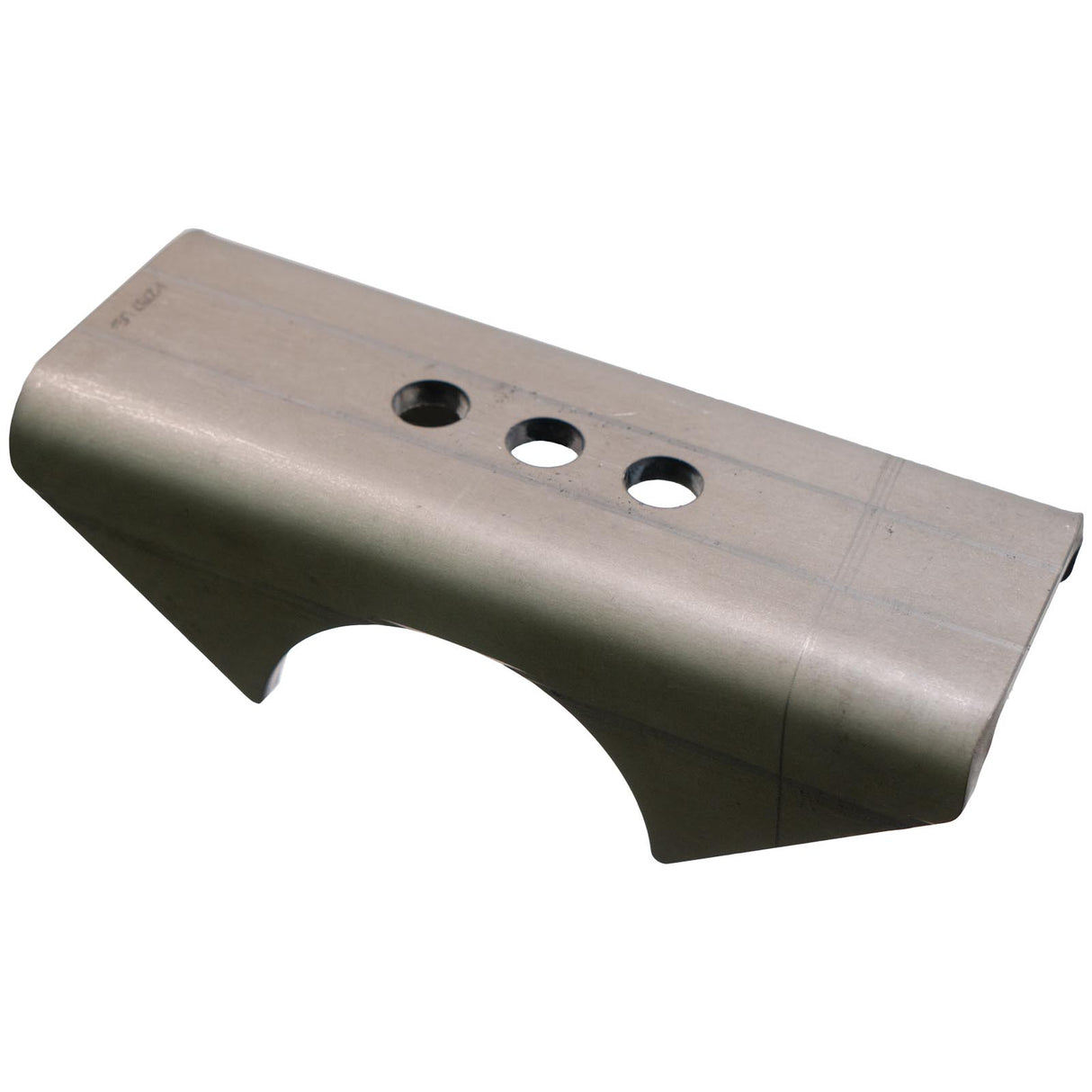

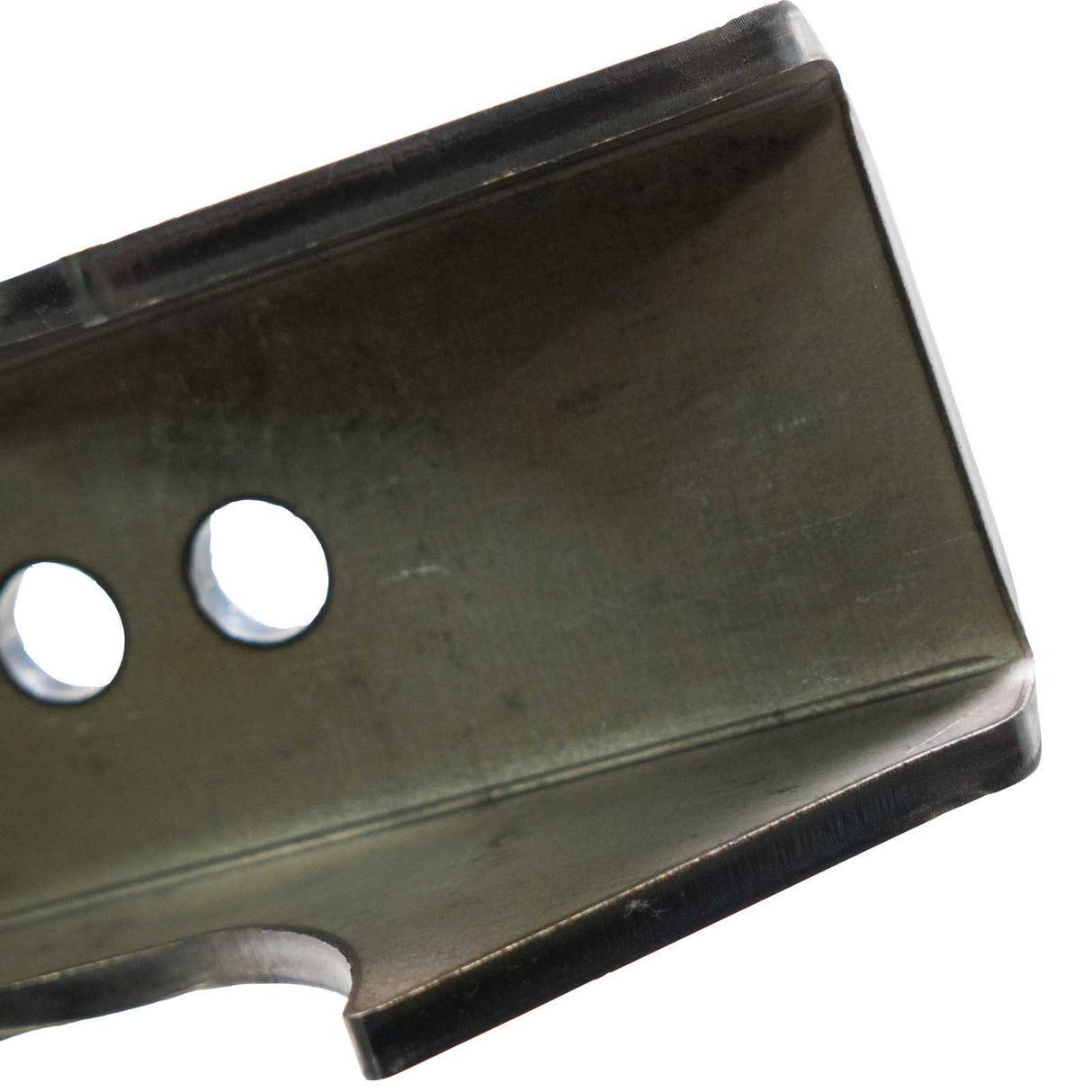

This isn’t your average spring perch. Designed with extra length and adjustability in mind, these 3" wide Ruffstuff perches give your axle the stable foundation it needs for off-road abuse. CNC laser cut from 1/4" HR P&O steel and formed on a 290-ton press brake, they’re built for serious strength and precision.

Each perch measures 7.75" long to reduce axle wrap and increase contact with your leaf spring. With three center pin mounting options, you get the flexibility to shift your axle forward or backward to fine-tune your wheelbase. Designed to fit 3.5" axle tubes out of the box, they’ll also fit slightly smaller axle tubes with a little extra weld effort. Perfect for spring-over applications where strength, stability, and adjustability matter.

Key Features

• Part Number: R2757
• Material: 1/4" HR P&O steel – CNC laser cut and formed
• Axle Tube Fitment: 3.5" (can be modified to fit smaller tubes)
• Perch Width: 3"

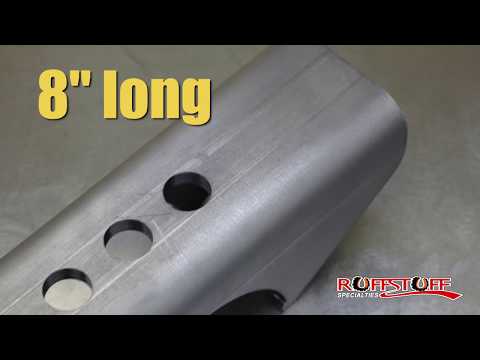

• Length: 7.75" – helps reduce axle wrap
• Center Pin Options: 3 mounting positions for wheelbase tuning
• Application: For spring-over-axle (SOA) setups

What’s Included in This Kit

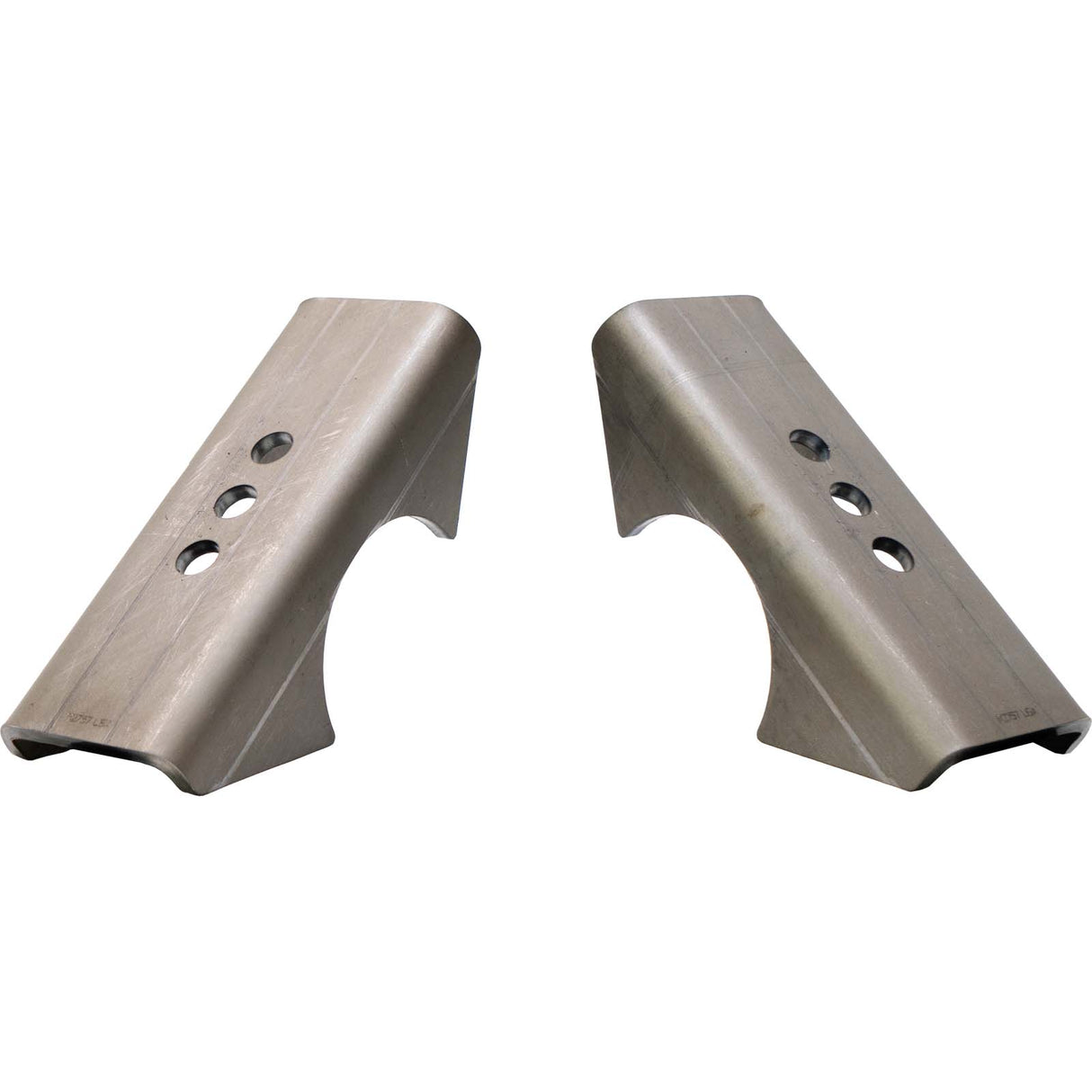

• 2 Spring Perches (1 pair – enough for one axle)
