SKU: R1425 1.25" Hex Head Tube Adapter Right Hand 1.5(ID) 12(TPI)

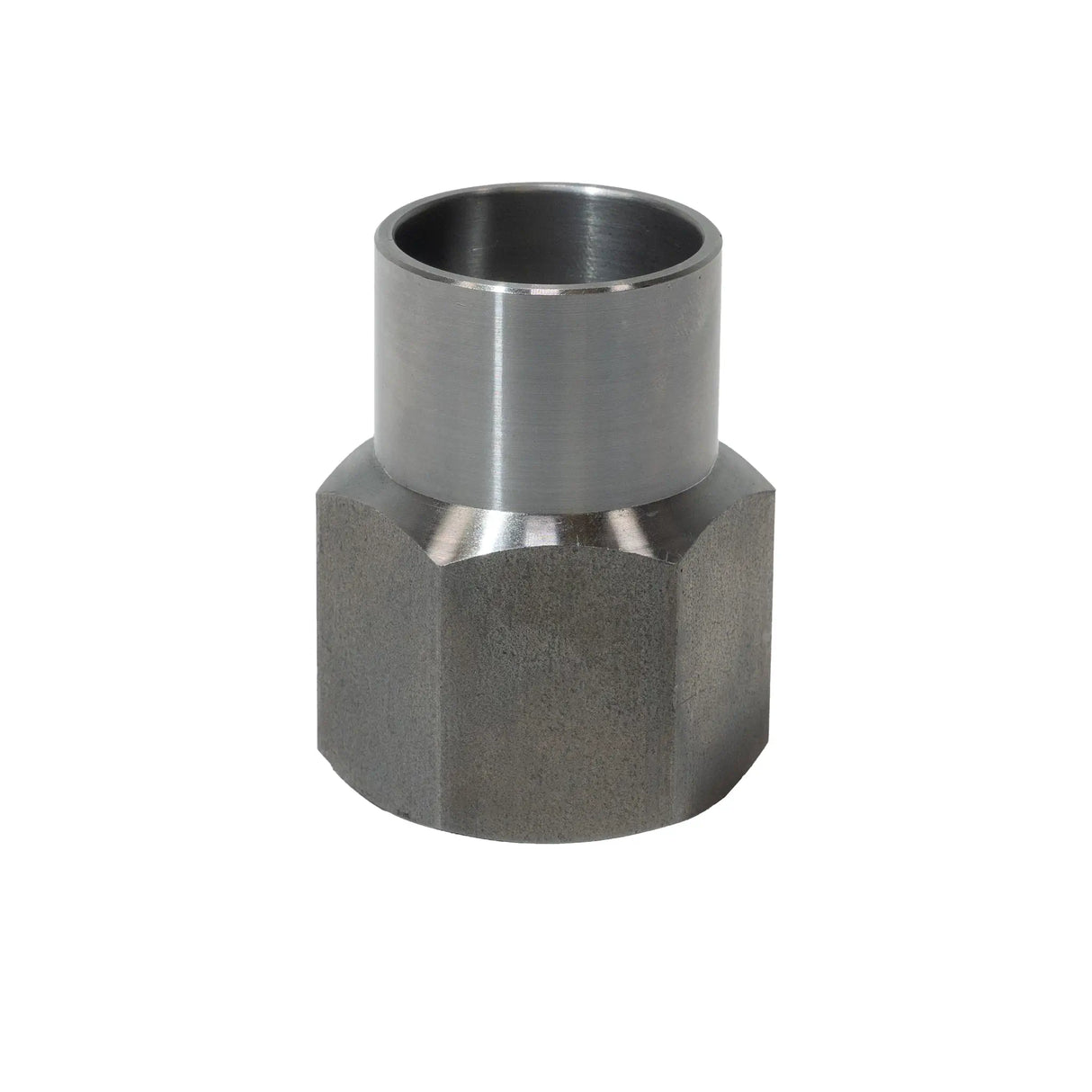

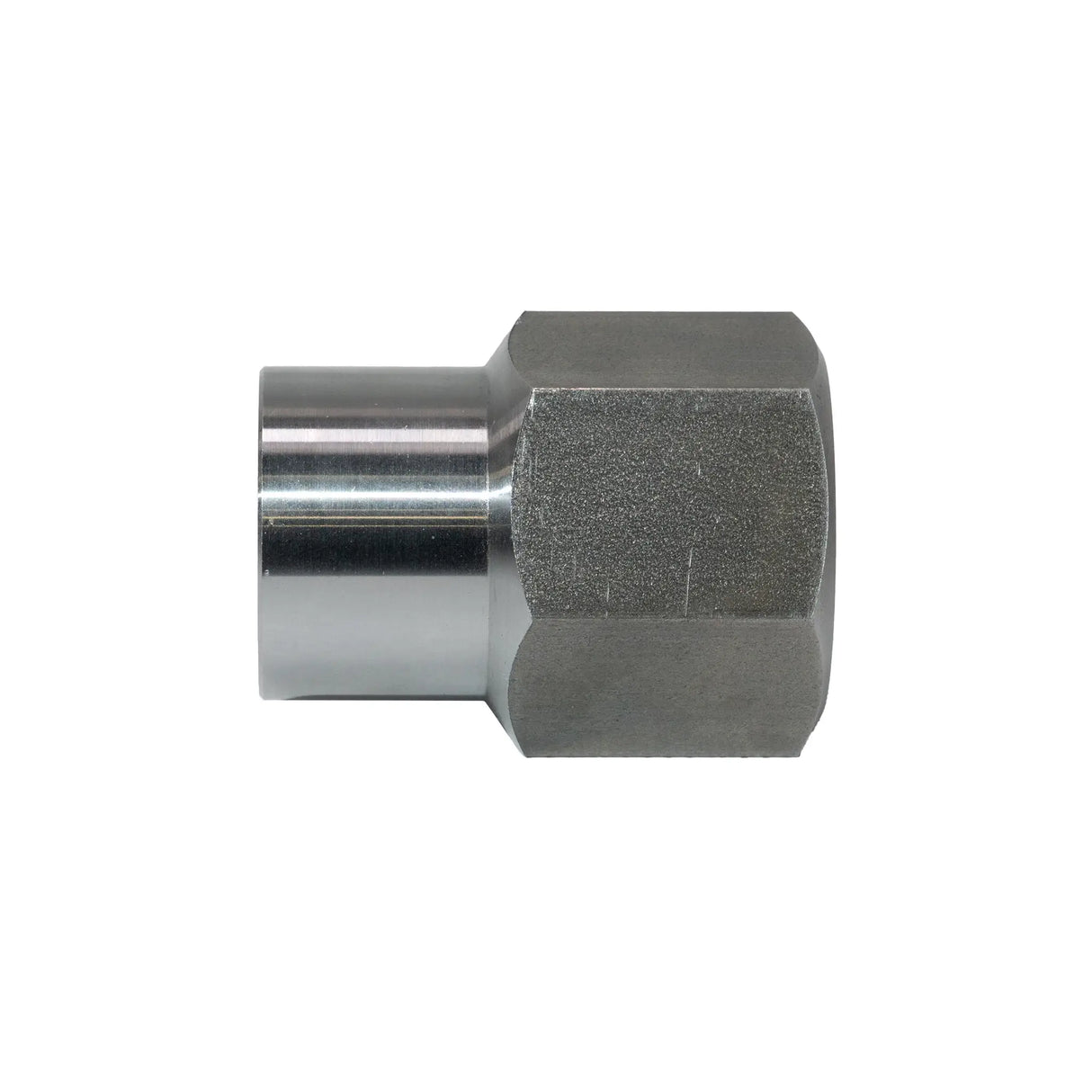

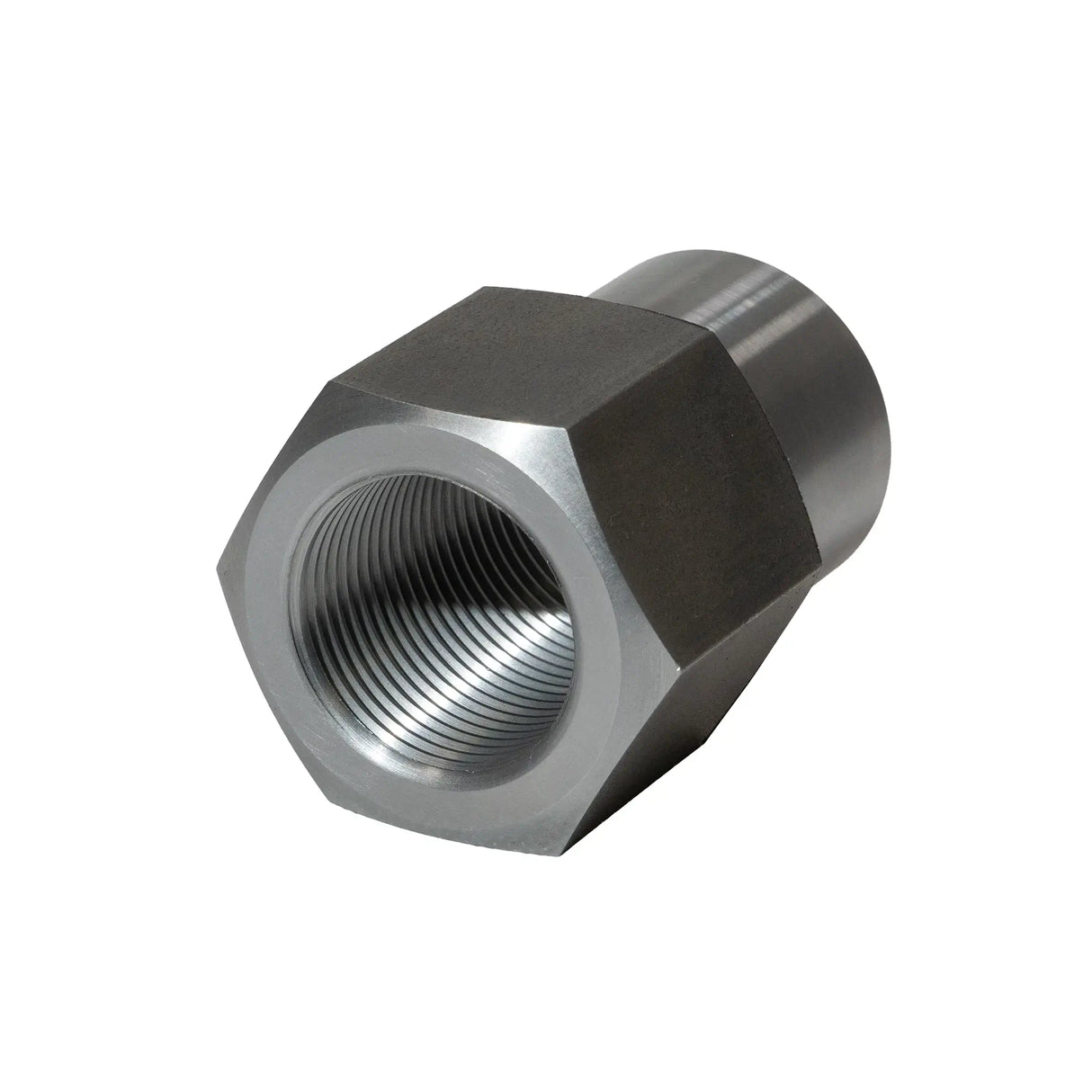

1.25" Hex Head Tube Adapter Right Hand 1.5(ID) 12(TPI)
Click image to zoom
Purchase 1.25" Hex Head Tube Adapter Right Hand 1.5(ID) 12(TPI)
  • 1.25" Hex Head Tube Adapter Right Hand 1.5(ID) 12(TPI)

  • ★★★★★ ★★★★★ 2 reviews
  • Part Number: R1425
  • Shipping Weight: 0.50 pounds

  • Quantity in Basket:  None

  • $16.50

    In Stock

This is a Right Hand HEX Head Weld in Threaded Bung for your link suspension, this one is the big guy made for the bottom of the truck. The side that's going to see the dirt firsthand. We make these a little different that the rest, the way I want them to be. They allow for most of the heim to go into the tube itself so it is supported by both the bung and the tube. They are much stronger when used like this. It is a fair priced and reliable choice of tube Insert for your truck.

They are sold individually but we can fit a ton of them in a small flat rate box!

*Tips to help prevent any seized or warped threads:
Correctly adjust welder settings and start your puddle on the tube. (Too much heat will warp the threads)
Do not weld the tube adapter with the rod end threaded inside. (The two pieces cool at different rates and will lock them together) Wait until everything has completely cooled before threading your rod ends into the adapters

Write Review
★★★★★ ★★★★★
5.00/5 Stars out of 2 Reviews
5
2
4
0
3
0
2
0
1
0
1.25" hex head tube adapters
5
Colin (Michigan) | January 4th, 2021
After looking around at a number of options for my suspension link ends, I opted for these adapters and they are BEEFY. Having a hex end was important to me and these provide a ton of area for getting a wrench on to hold the link while tightening jam nuts.
Verified Buyer
1.25" hex head tube adaptor
5
Jeremy Greiner (Butler, Pa, US) | January 15th, 2020
Ordered these hex head tube adaptors for my control arms, and once fit up...area of weld was perfect size depth to be Tig welded. Can be mig welded, but I prefer to Tig small parts. OD of hex head is same Size as the OD of the tube. Highly recommend.
