2.5" Spring U-Bolt Plates For Jeep

2.5" Spring U-Bolt Plates For Jeep

Heavy-duty U-bolt plates with multi-hole adjustability for Jeep axle swaps.

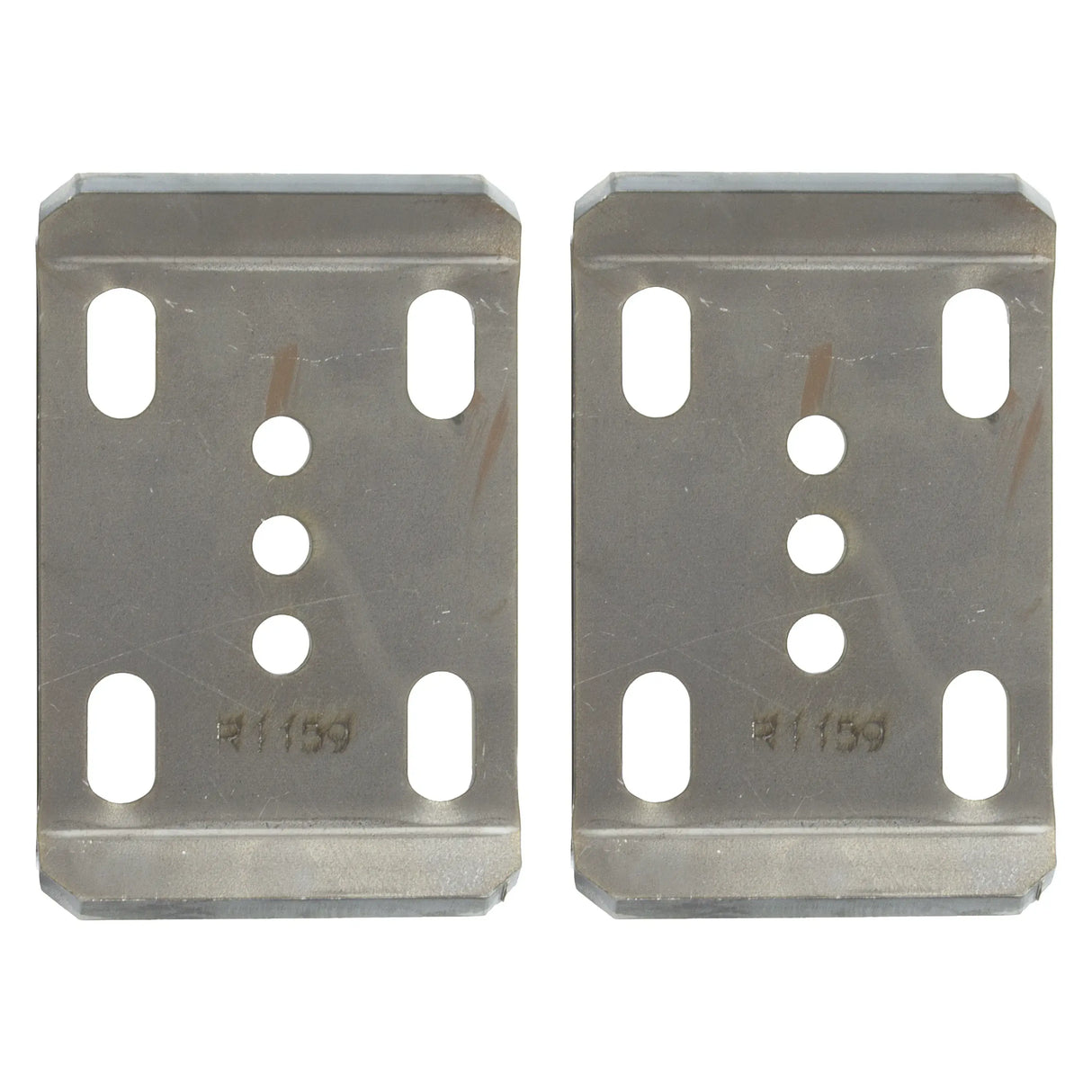

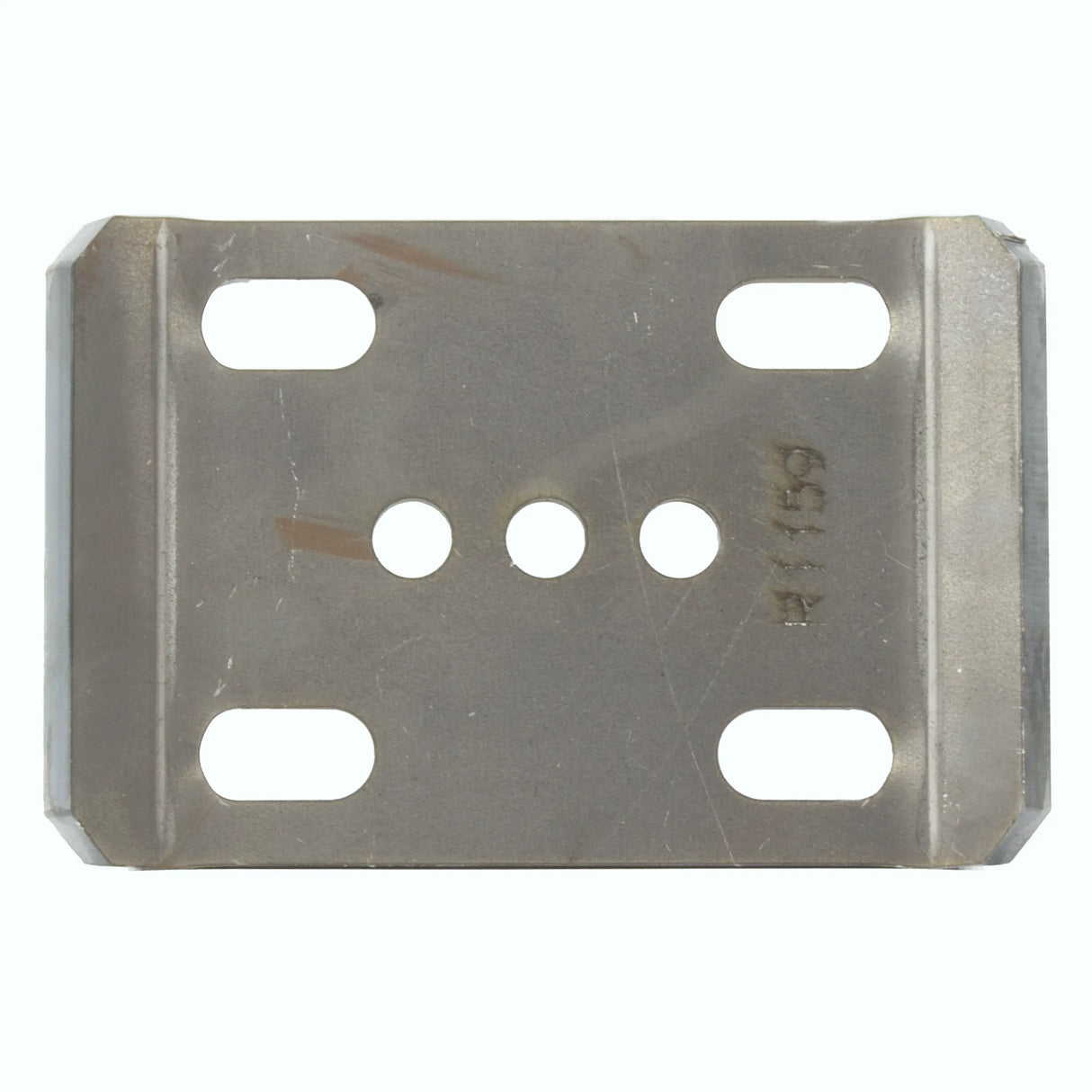

Originally designed around the standard 2.5" GM leaf spring, these RuffStuff U-Bolt Plates are a solid choice for Jeep builds using 2.5" to 2.75" wide springs. They’re compatible with axles from 2.5" to 4" in diameter, giving you flexibility whether you're working with stock or upgraded axle tubing.

Each plate is CNC cut from .375" HRPO steel and includes three spring pin location options, which makes fine-tuning your axle position easier during setup. Built to handle real off-road abuse, these are ideal for Jeep owners doing axle swaps, spring-over conversions, or general suspension upgrades.

Key Features

• Part Number: R1159
• Spring Width Fitment: 2.5" to 2.75"
• Axle Tube Fitment: 2.5" to 4" diameter
• Material: .375" HRPO steel plate
• Spring Pin Positions: 3 optional mounting holes
• U-Bolt Compatibility: Fits 9/16" to 5/8" U-bolts (we recommend 5/8")
• Application: Jeep axle swaps, spring-over builds, and leaf spring suspension upgrades
• Made in the USA

Sold in pairs
