14 Bolt Disc Brake Bracket Pair for C&C Axle

Name: 14 Bolt Disc Brake Bracket Pair for C&C Axle
Brand: Ruff Stuff Specialties
SKU: R1022-B-Kit-1
Price: 59.00 USD
Availability: InStock

Part Number: R1022-B-Kit-1

Shipping Weight: 7.4 lb

$59.00

Shipping calculated at checkout.

Description

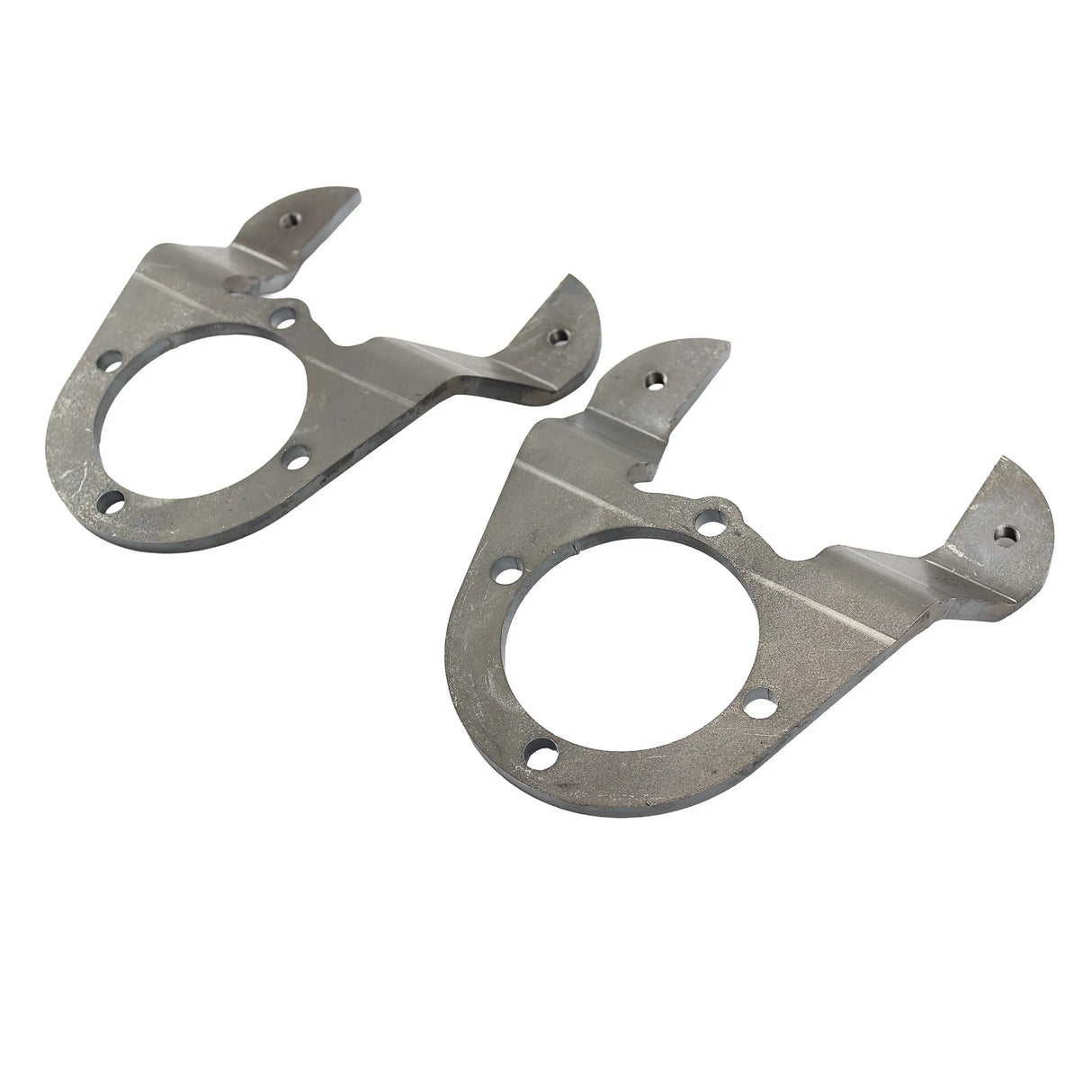

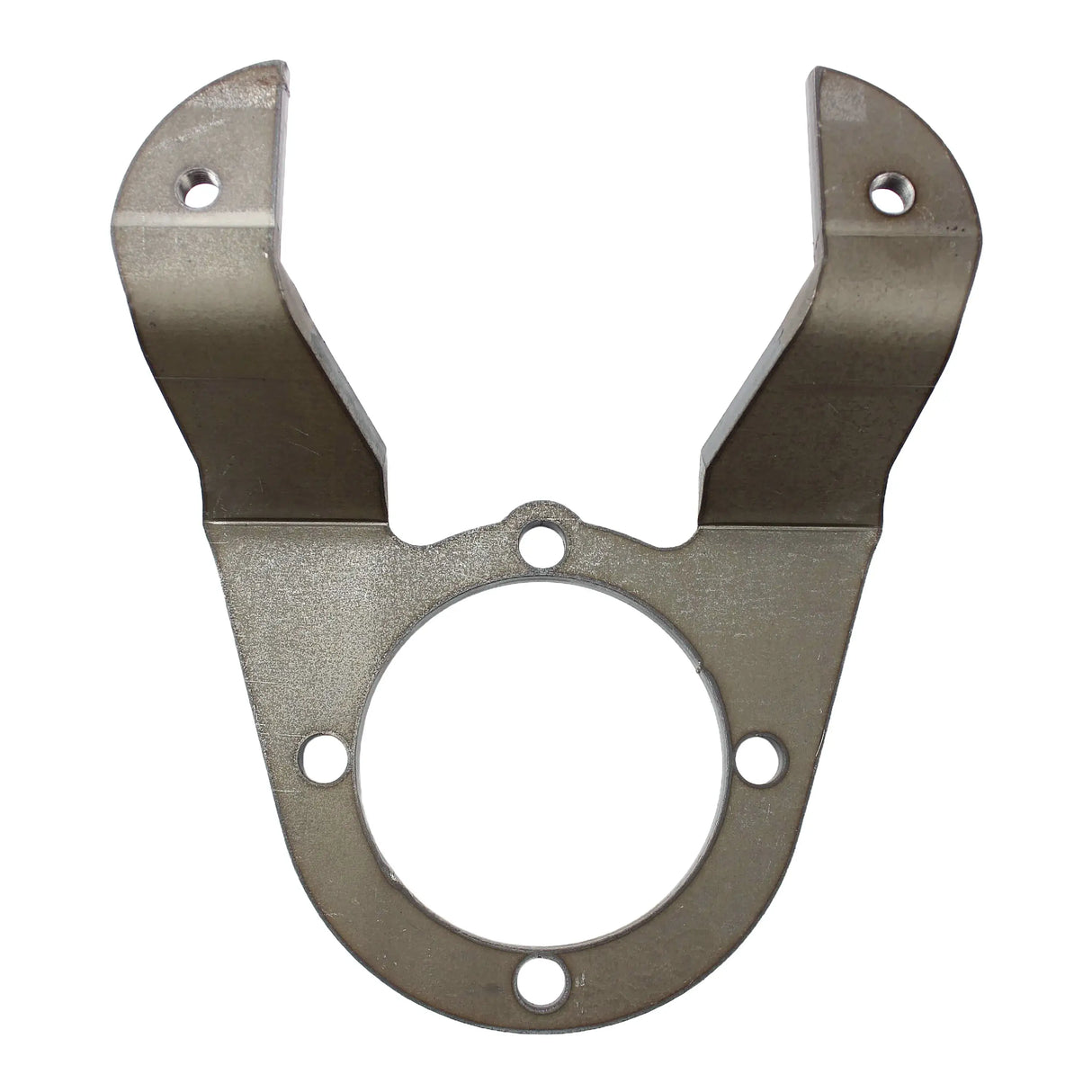

14 Bolt Disc Brake Bracket Pair for Cab & Chassis Axles

Clean disc swap for C&C axles—no spacers, no guessing.

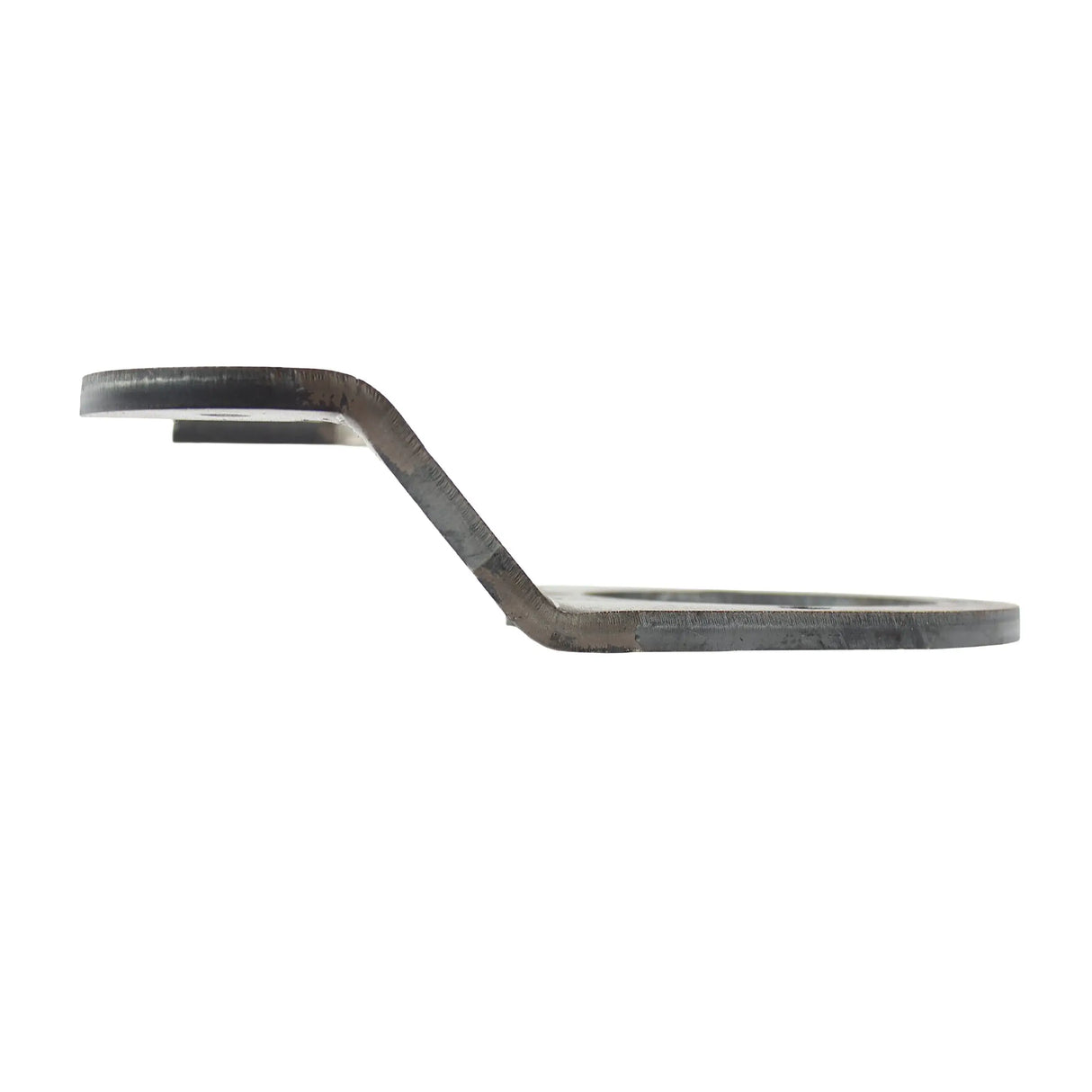

Designed specifically for converting '73–'87 Cab & Chassis (C&C) 14 Bolt axles to disc brakes, this bracket set allows you to run standard single 15" steel wheels (with a maximum of 4" backspacing). Each bracket is laser-cut from 3/8" steel plate and precision-bent to the correct offset—eliminating the need for spacers or stack-up hardware.

They’re engineered to work with the common '75 Chevy 3/4 Ton front rotors and calipers, just like our standard 14 Bolt disc brake brackets, but offset specifically to match the C&C flange position. Whether you're narrowing a full-float axle or simply upgrading to better braking, these bolt-on brackets simplify the job and deliver rugged, reliable results.

Key Features

Part Number: R1022
Material: 3/8" thick laser-cut steel, precision formed
Fitment: '73–'87 Cab & Chassis 14 Bolt axles
Wheel Compatibility: Requires 15" steel wheels (max 4" backspacing)
Offset: Corrected specifically for C&C flange spacing
Installation: Bolt-on design – no spacers required
Made in the USA

What's Included in This Kit

2 - 14 Bolt Disc Brake Brackets (for C&C axles)

Important Notes

Not compatible with dually wheels
Not for 1999+ 14 Bolt axles — use weld-on brackets for newer models
Studs must drop freely into the rotor – do not press-fit
If studs are oversized, rotors must be drilled to fit
Ensure a minimum of 5/8" thread engagement with lug nuts

Recommended Components

Calipers (Later Years): LH - N4674, RH - N4673
Calipers (Earlier Years): LH - N4597, RH - N4596
Rotor: NAPA 4885677
Brake Hose: H86572
RuffStuff GM Dual Bleeder Calipers

Use with RuffStuff calipers: GM Dual Bleeder Loaded Brake Caliper

Sold in pairs

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Great product, excellent customer service!

I purchased a set of these C&C specific brake disc brackets, had a mix-up and was shipped the non-C&C brackets. I contacted Dan who responded immediately and was apologetic and helpful in making sure that I did order and need the C&C brackets. We sorted everything out within minutes, and he shipped out the correct brackets and a return label that day. I literally could not ask for better customer service. Thanks Dan!

The brackets themselves work exactly as they need to. They're very beefy at a full 3/8" thick, and the fact that they bolt on made my job converting to disc as simple as it could be. Awesome product at a great price!
