Ford Dana 60 U-Bolt Plates (Front, Early)

Ford Dana 60 U-Bolt Plates (Front, Early)

Correct-fit U-bolt plates designed specifically for early Ford Dana 60 front axles.

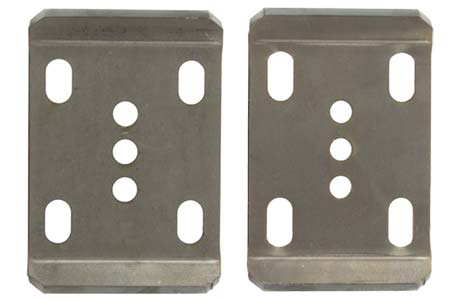

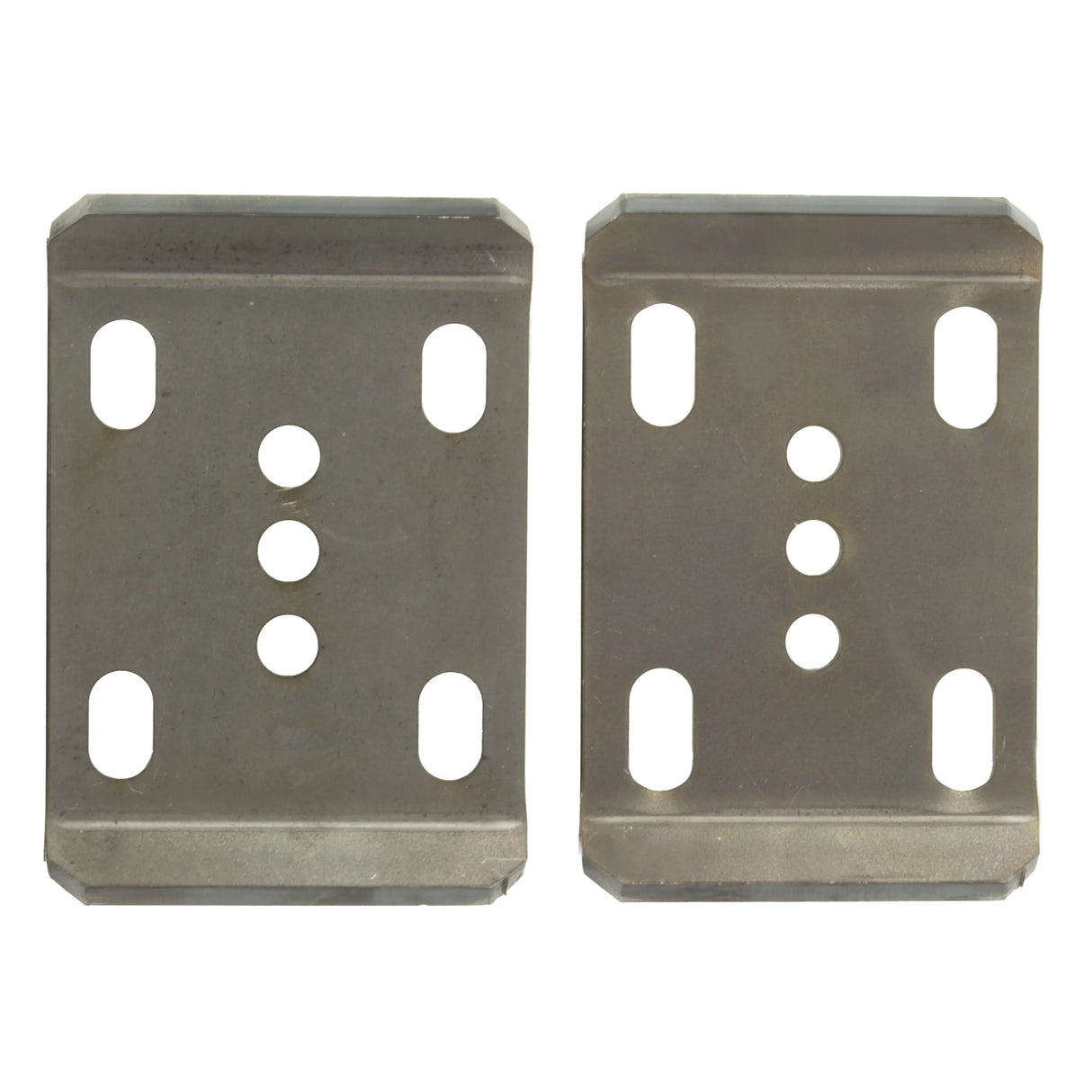

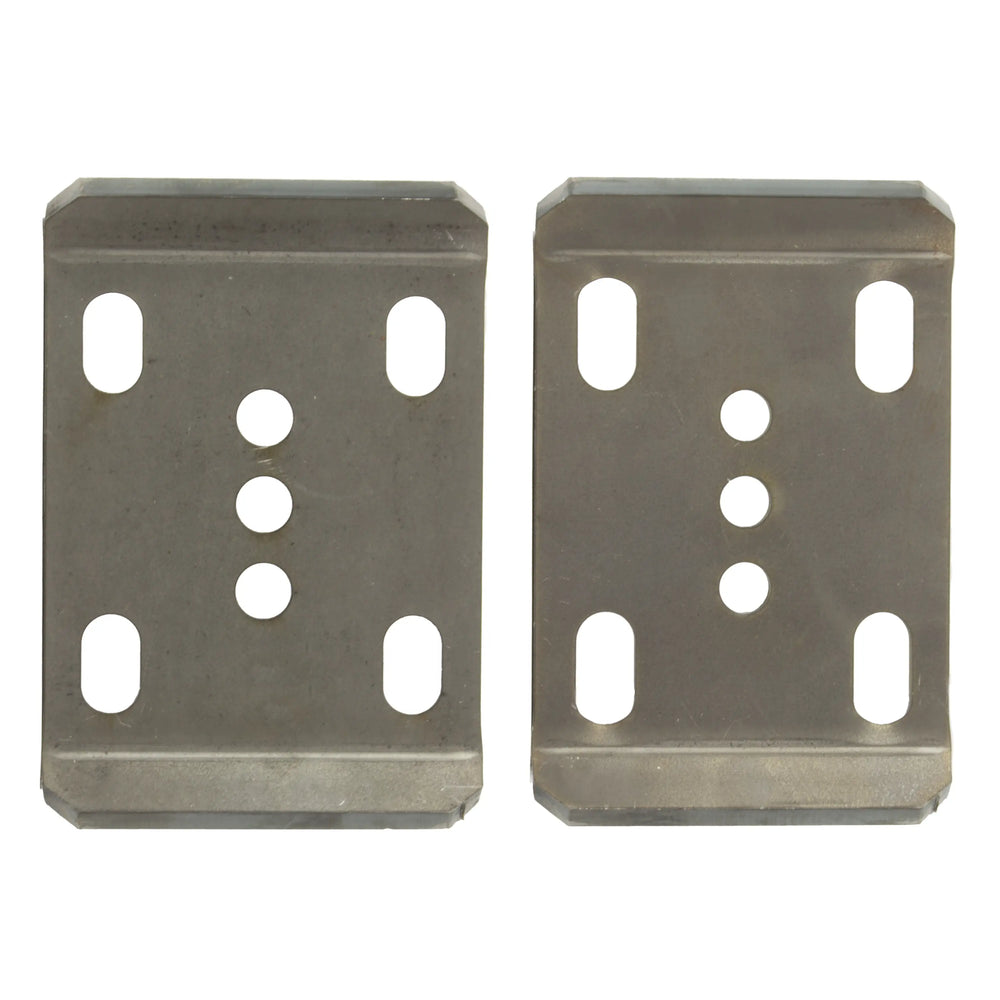

These U-bolt plates are built for early Ford Dana 60 axles running 2.5" wide leaf springs. Unlike universal plates, these are cut to match the unique bolt spacing found on the driver side where the diff housing shifts the U-bolt spread. The driver-side plate has a slightly wider hole pattern, while the passenger side follows the standard tube layout. Strong, simple, and tailored for your front-end swap.

Key Features

• Part Number: R1144
• Fits early Ford Dana 60 front axles
• Designed for 2.5" wide leaf springs
• Driver-side plate has wider U-bolt spread for diff side fitment
• Passenger-side plate matches tube-side layout

What's Included

• 1 Driver-side U-bolt plate (wider spread)
• 1 Passenger-side U-bolt plate

Note

Pair these plates with the correct U-bolts for your axle tube size. If you’re unsure which tube size you’re running, measure before ordering to avoid mix-ups.
