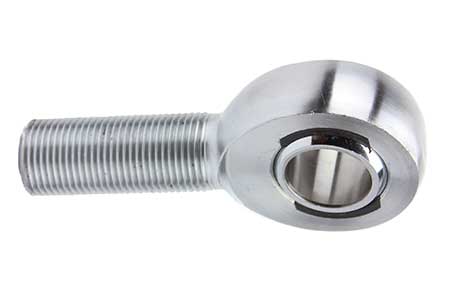

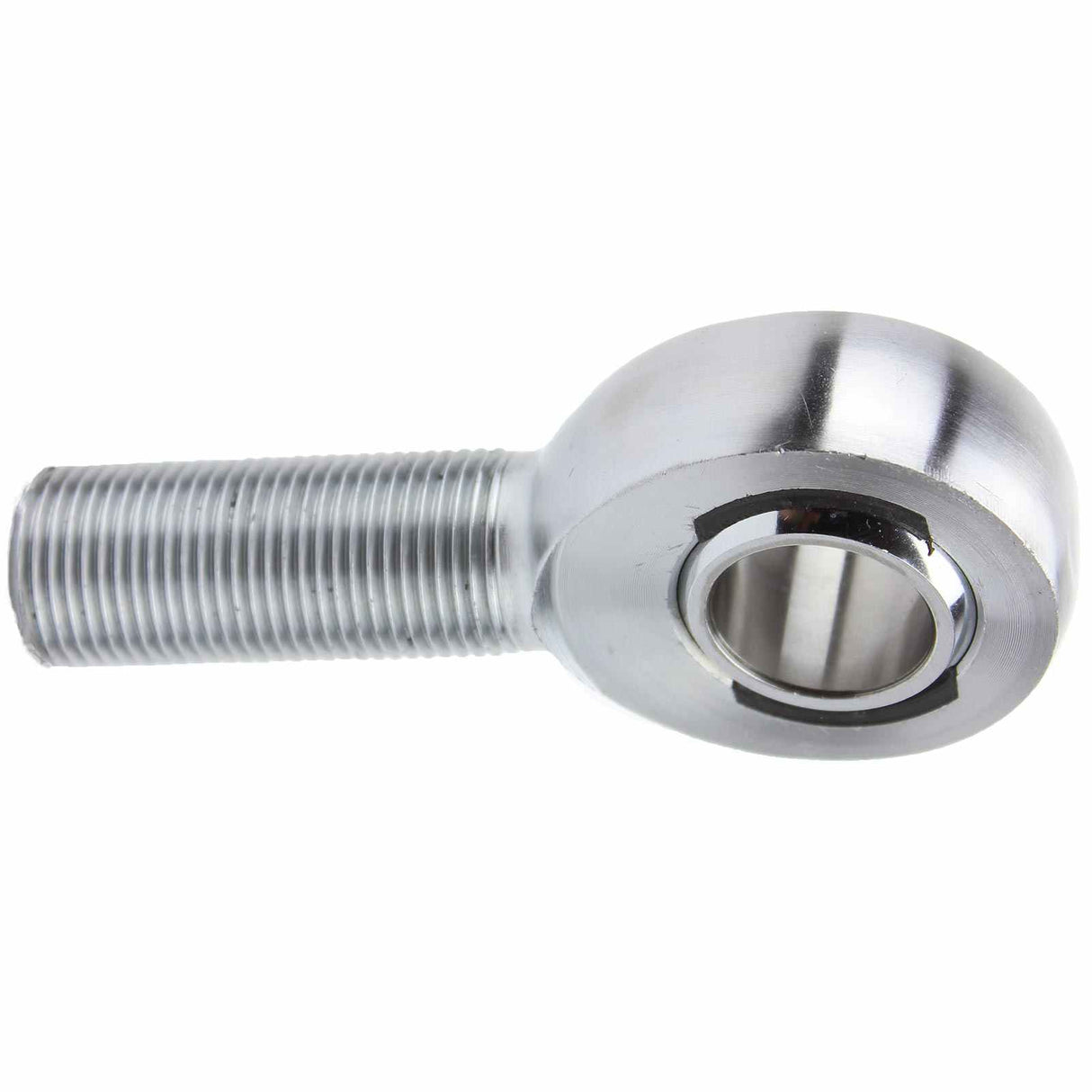

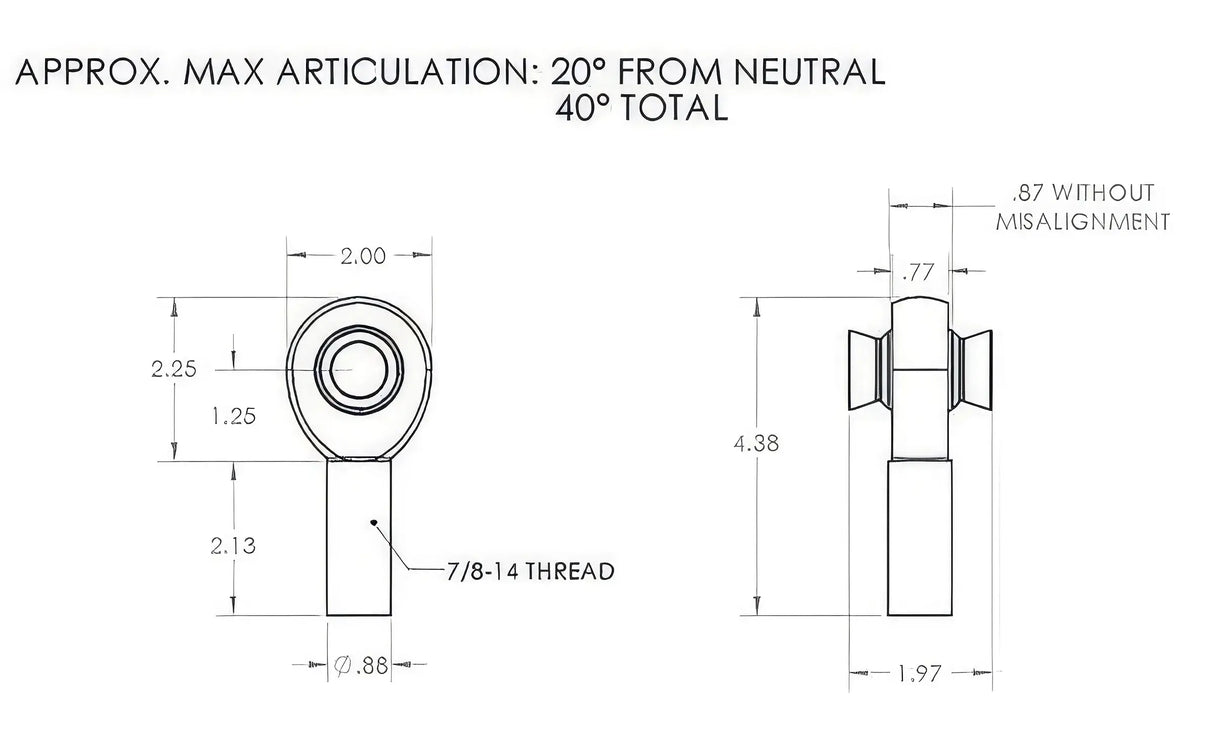

7/8" x 7/8" Rod End Right Hand (14 TPI)

Part Number: R1303
Shipping Weight: 0.9 lb
$37.00
Shipping calculated at checkout.

Description

7/8" x 7/8" Rod End Right Hand (14 TPI)

Heavy-Duty Chromoly Heim Joint for Steering & Track Bars

This 7/8" shaft with a 7/8" bore (14 TPI) is a premium heat-treated Chromoly rod end designed for strength and precision. Recommended for steering and track bar applications, it offers a balance of durability and smooth operation for off-road and custom builds.

  • Part Number: R1303
  • 4130 Chromoly housing with hard chrome finish
  • 51200 bearing steel ball, heat treated and hard chrome finished
  • Teflon-impregnated nylon race for reduced friction and long service life
  • Approximate ultimate radial static load: 45,000 lbs
  • Optimized for steering and track bar use

Maintenance Tip: Use Tri Flow only to lubricate our rod ends. Products like WD-40 or Blaster can damage the Teflon liner and void your warranty.

Prop 65 Warning Icon
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Eric V.
Ron is The Man!

Super Stoked on Ron's help getting dialed in on what I needed to convert from Metric to SAE on some adjustable rear LCA's and Panhard Bar on my 98 4Runner. With Ron's help, I saved unnecessary fabrication time and components. The Joints seem solid; I've been running them for a week.

I
Isaac Lorah
7/8x7/8 rod end

I've used the ruff stuff 7/8x7/8 rod end to build multiple sets of traction bars. I was very happy and impressed by the quality of the rod ends. They move nicely with no binding. And I can also tell that they are built to last I will only ever buy these rod ends.
