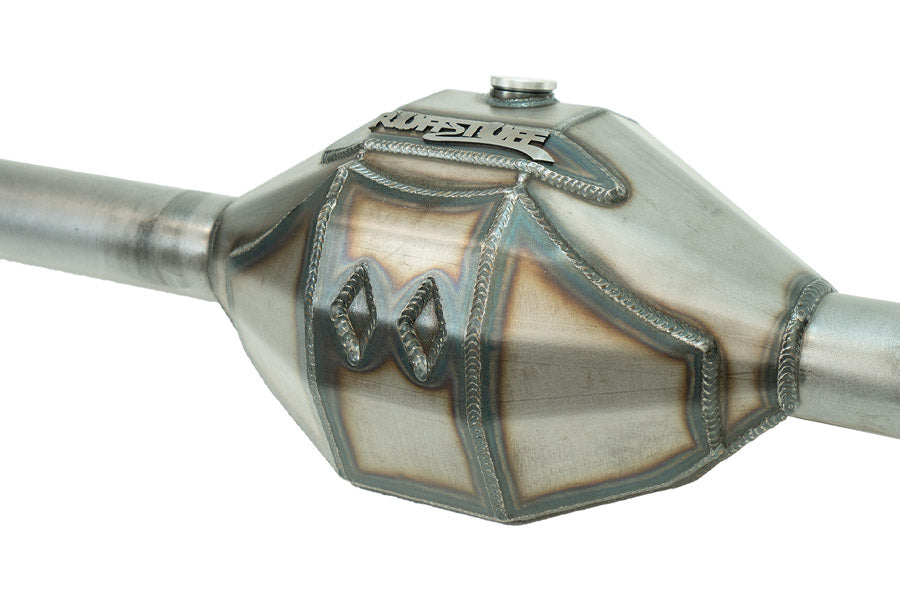

Toyota Tundra 10.5" Axle Housing

Toyota Tundra 10.5" Axle Housing

*All axle housings are build to order and currently have about a 3 week turn around time*

Tube end to tube end measurement is 72"

What we have here is yet another alternative in the serious axle game. This, like all Toyota axles, is built very well and is very reliable with a couple of very good things going for it.

The first thing to notice about the Tundra 10.5" axle is the pinion location. The Pinion is nearly centered, not very low like a 9", not pretty low like a D60 or 14 bolt but up out of the way which is going to do wonders for your pinion yoke, U joints, & driveshaft

Includes:

• Tundra 10.5" bare tube housing

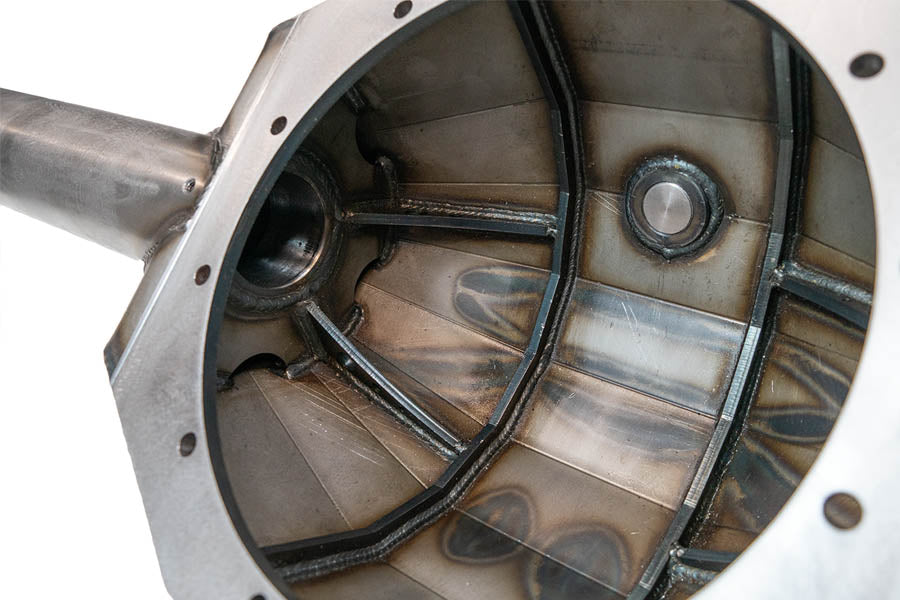

• Center section armor installed
• Fill plug
• Inner seal surface and seal set screws
• Breather vent thread in brass barb fitting (drilling and tapping required)

Specifications:

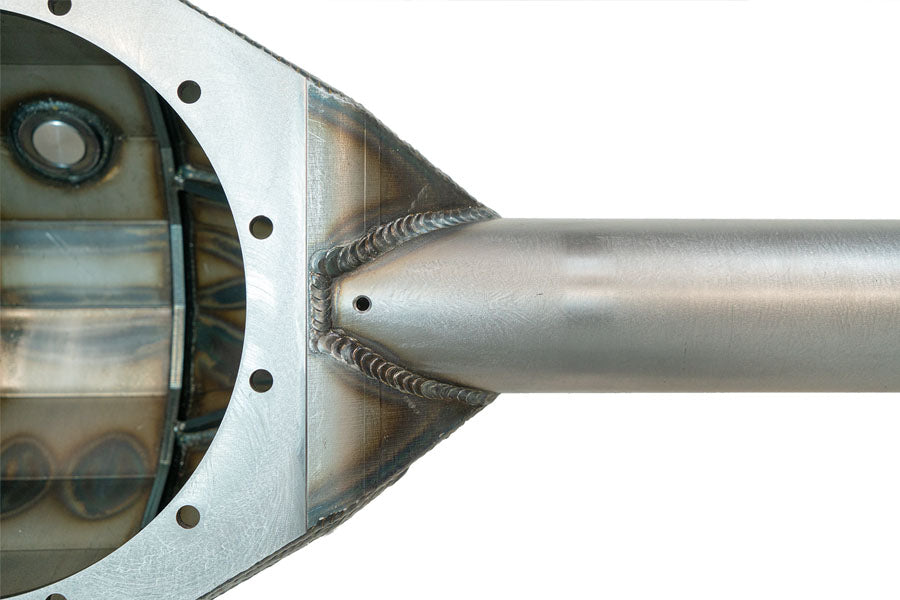

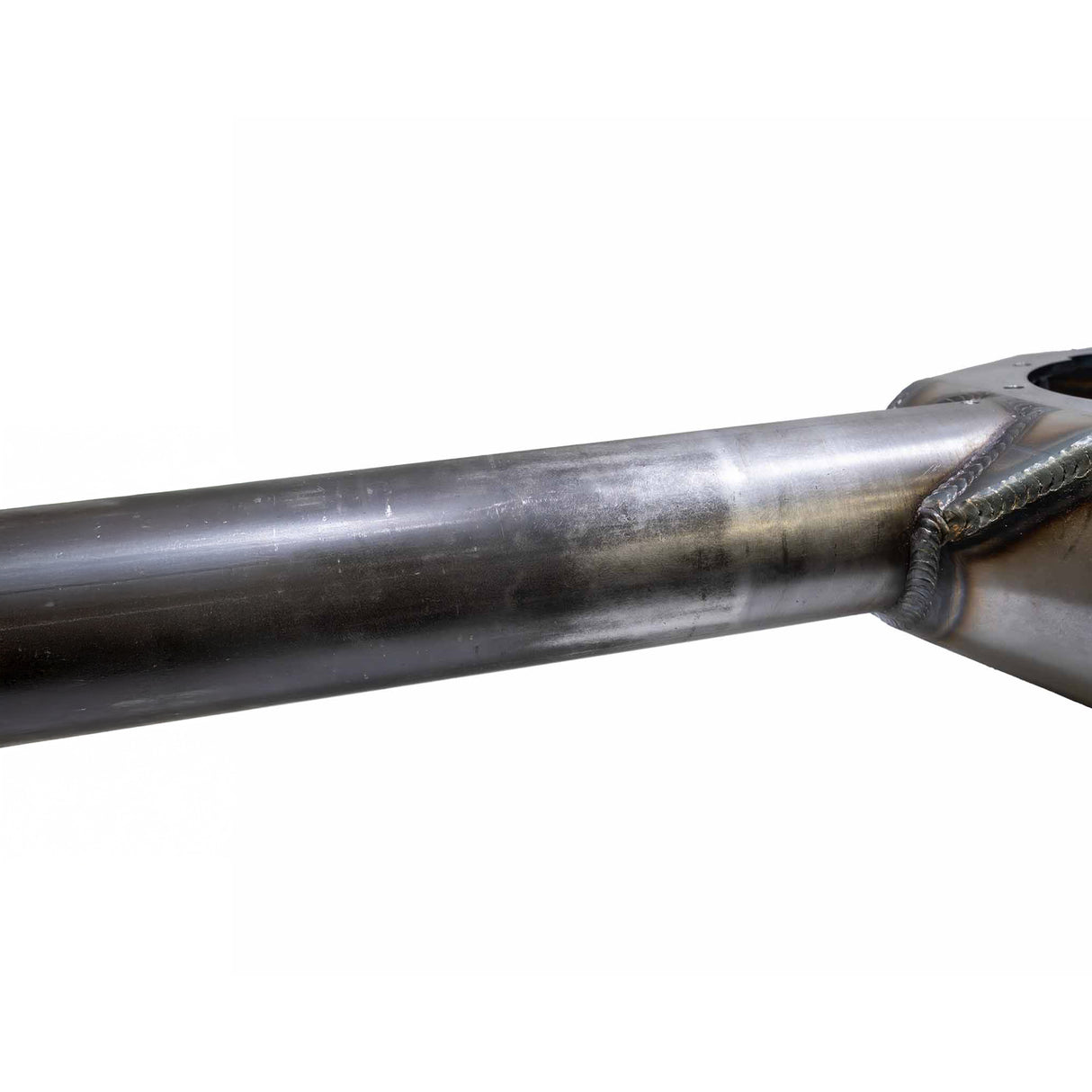

• Axle Tube:
• 3.5"OD 2.75"ID (3/8" wall DOM)
• Comes Raw

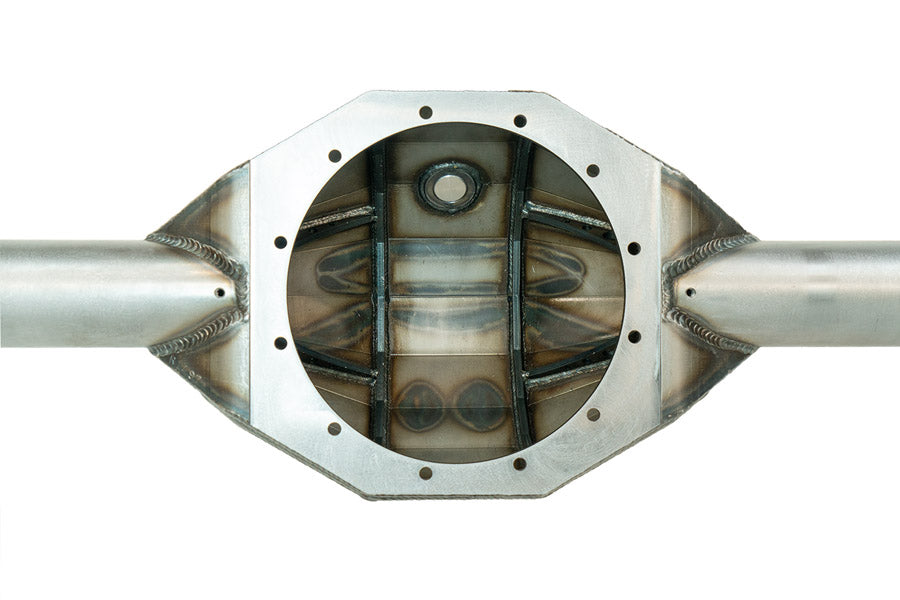

• Face plate:
• 3/8" thick steel, machined after welded

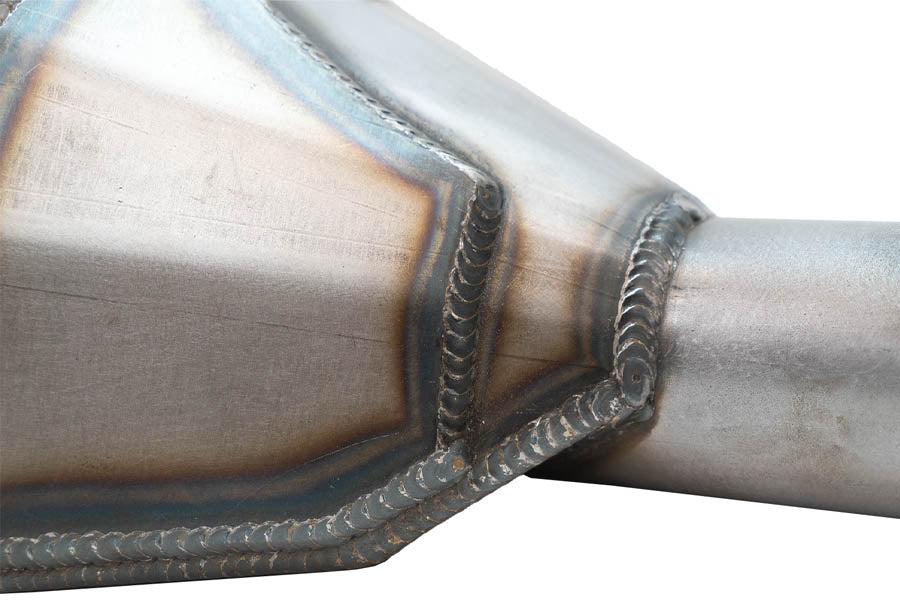

• Main Shell:
• 1/4" thick steel

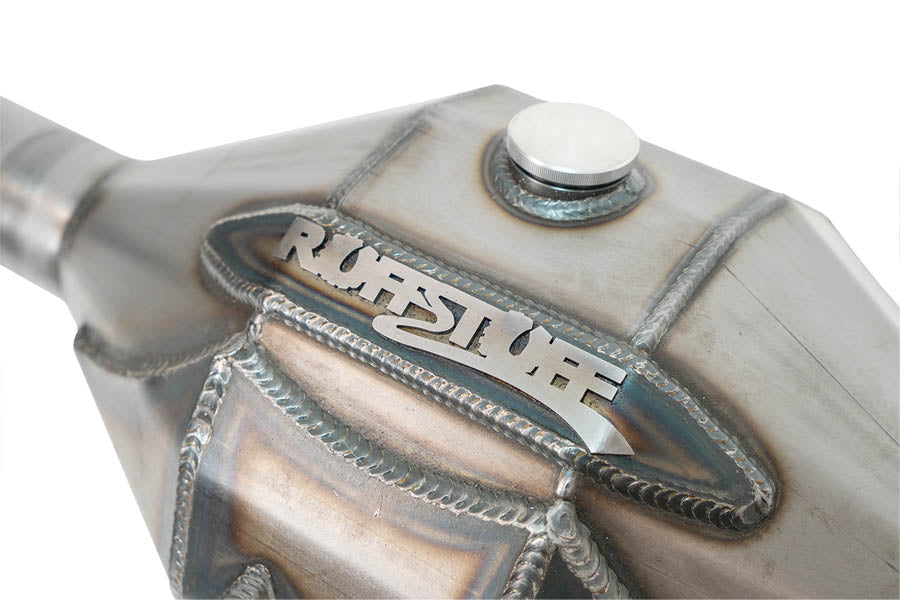

• Fill Plug:
• 1.25" x 12 UNF steel bung, aluminium cap RuffStuff Specialties: Ruffstuff Oil Fill Plug
• Breather vent (drilling and tapping required- thread pitch 5/16"- 18TPI)

• Brass thread in barb fitting
