Dana 60 Flat High Steer Arm Pair

Dana 60 Flat High Steer Arm Pair

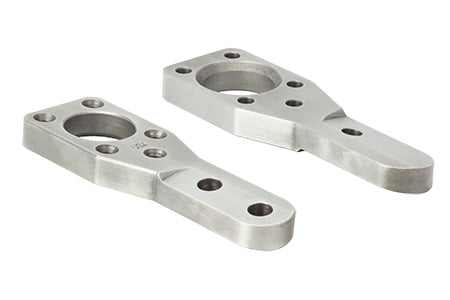

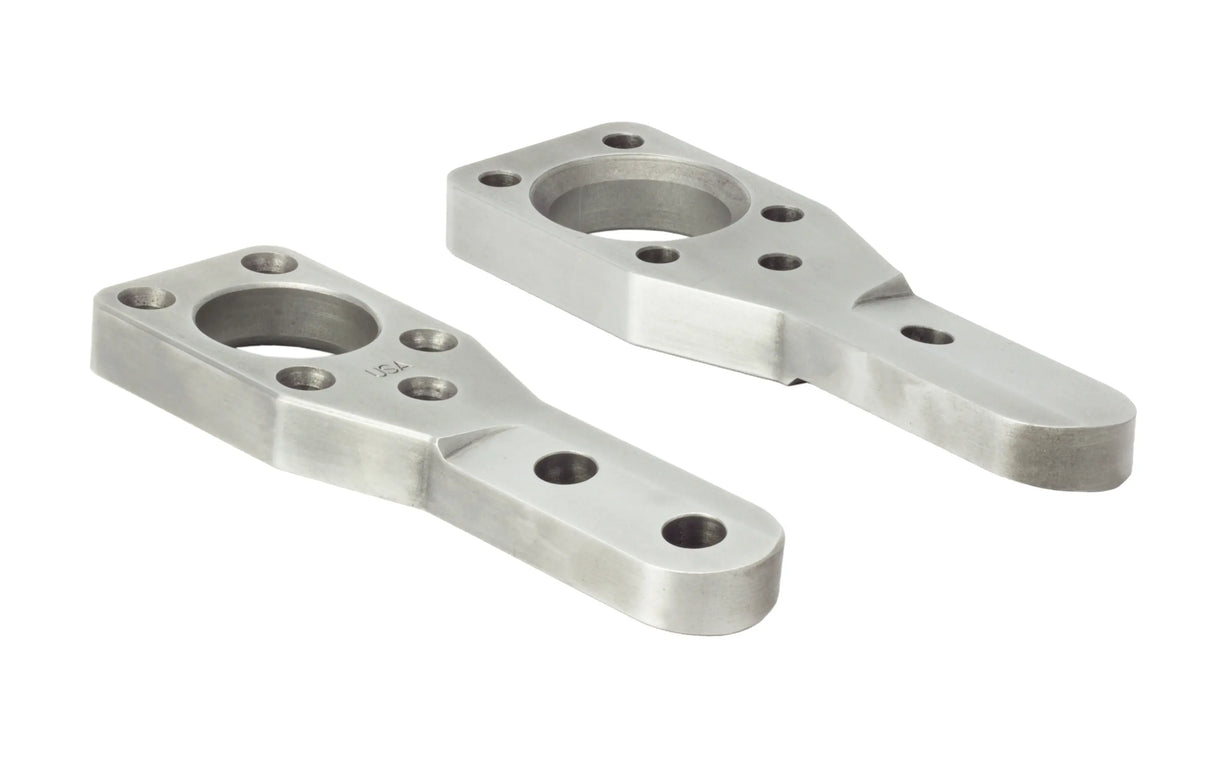

Flat High Steer Arms for Dana 60 – Pair

This pair of Dana 60 flat high steer arms is designed for crossover and full high steer setups. Both arms are reamed for standard taper GM 1-ton tie rod ends, and can be drilled out for heim joints if needed. The passenger side comes pre-drilled with a second hole for drag link placement in crossover setups. Built for durability and clearance in off-road applications.

Key Features

• Part Number: R1861
• Fits Dana 60 kingpin front axles
• Reamed for GM 1-ton TREs (standard taper)
• Passenger arm includes 2 holes for crossover steering
• Can be drilled to 3/4" for heim joint use
• Drilled to .502" – may not fit studs with oversized shoulders
• Sold as a pair (driver and passenger sides)
• OFFROAD USE ONLY

Note: Verify stud shoulder diameter before installation. For 4-stud knuckles, additional machining or modification may be required.
