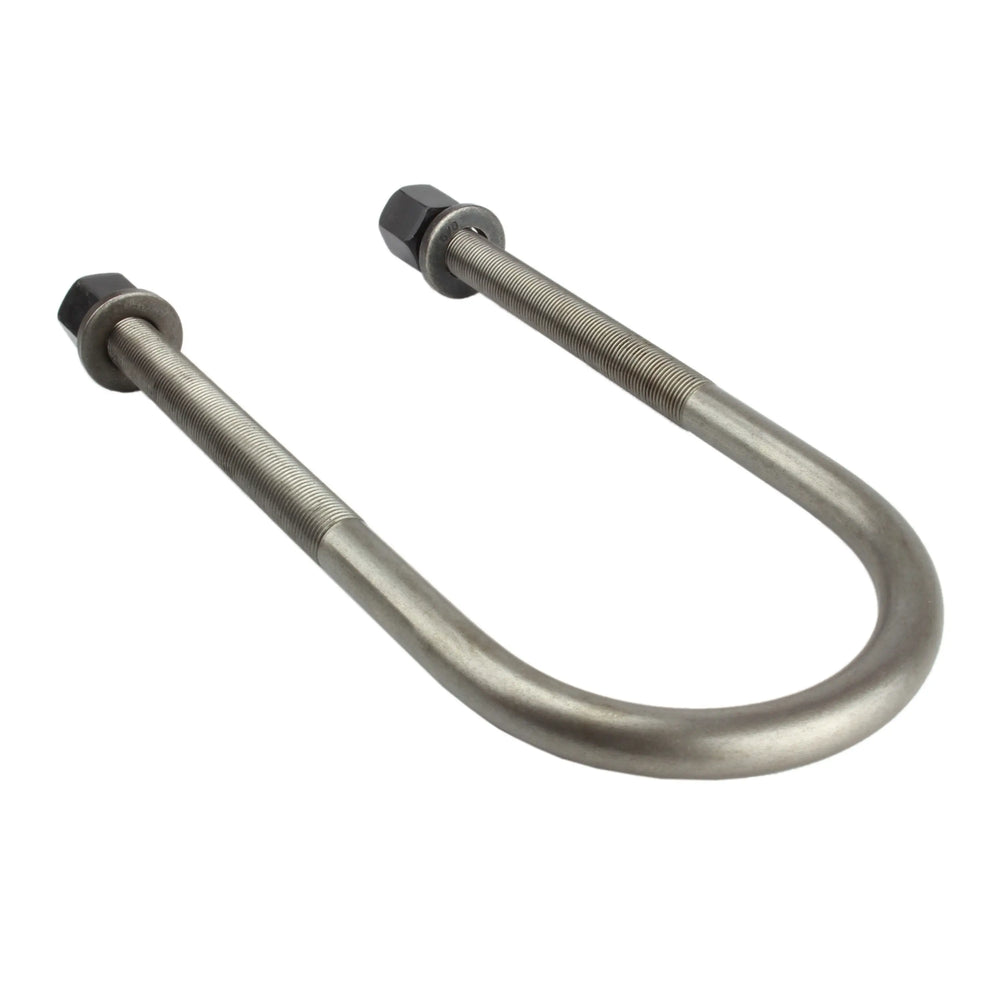

Short U-Bolt, 3" X 5/8" x 8"

Short U-Bolt, 3" X 5/8" x 8"

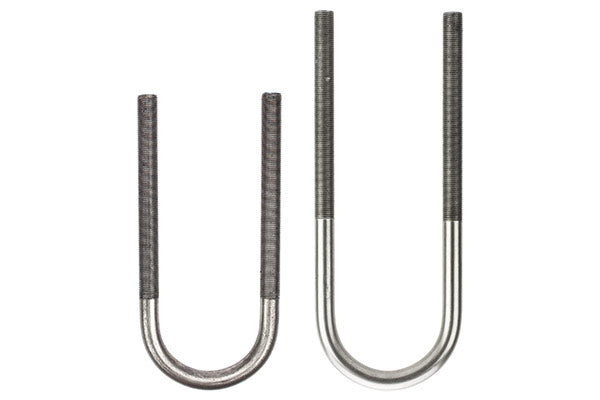

Shorter U-bolt designed for tight clearance applications.

This shorter version of our standard U-bolt is specifically made for 3" diameter axles where space is at a premium. Built with 5/8" rolled threads for extra strength, these U-bolts solve clearance issues in spring-under conversions and tight build situations. The 5" threading length covers most spring-under applications while allowing you to cut off excess length as needed.

Constructed from Grade 8 steel with rolled threads for maximum durability. Measures 3" wide with 5/8" diameter threading and 8" overall length. Designed to work with all of our U-bolt plates which are engineered for 5/8" hardware.

Key Features

• Part Number: R2316
• Fitment: 3" diameter axles, universal application
• Material: Grade 8 steel with rolled threads
• Dimensions: 3" wide, 5/8" diameter, 8" length, 5" threading
• Design: Shorter profile for tight clearance situations

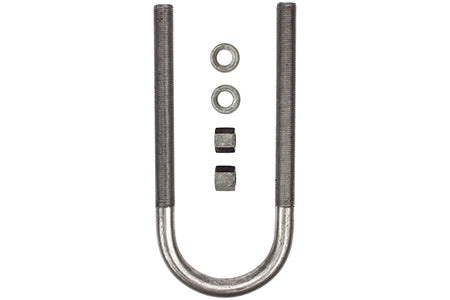

What's Included

• 1x Short U-Bolt
• 2x Tall Grade 8 Nuts
• 2x Thick Cut 1/4" Washers

Notes

• U-bolts sold individually - order quantity needed for your application
• Can be trimmed to length after installation if needed
• Recommended for use with Ruff Stuff U-bolt plates
