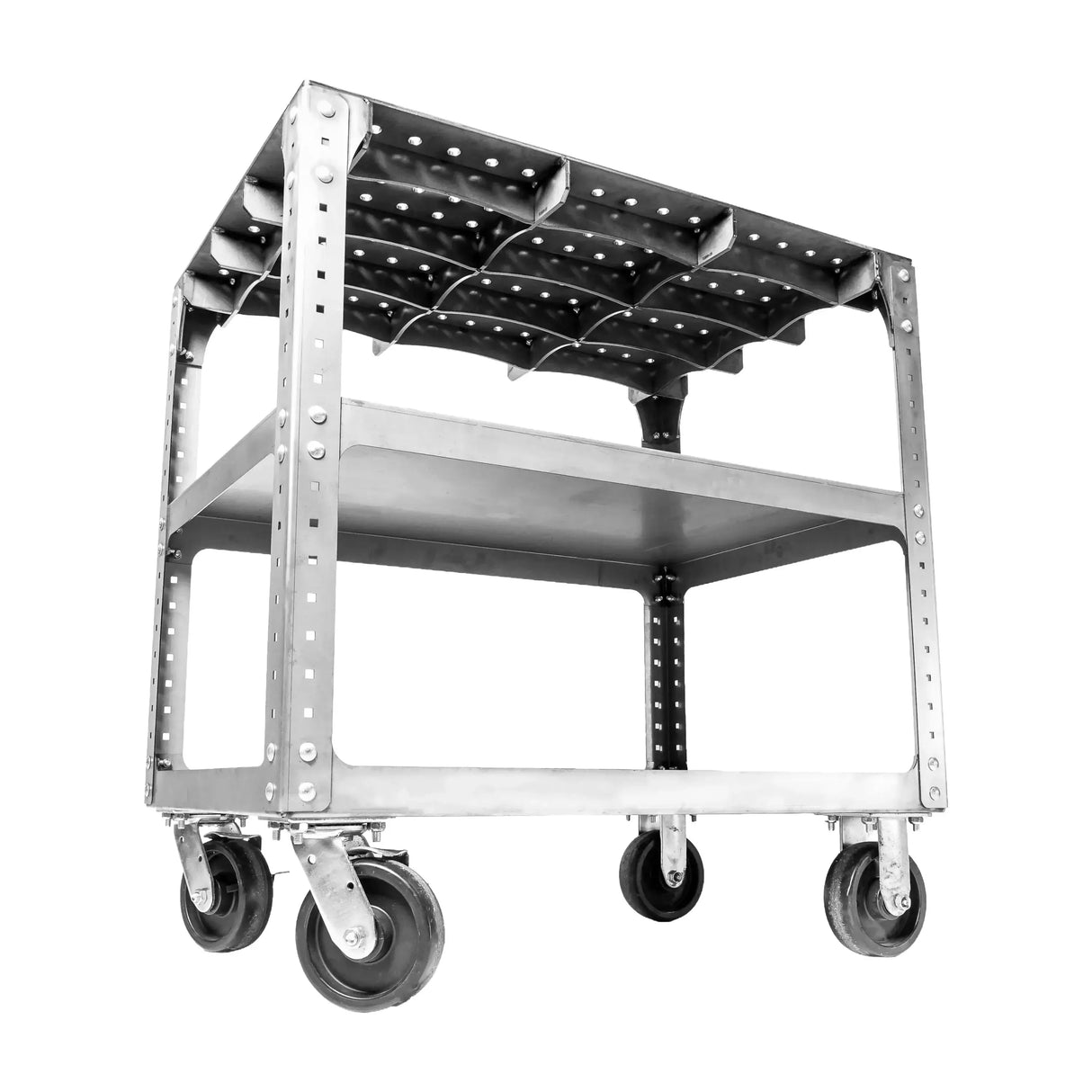

DIY Welding Cart 24"x36"

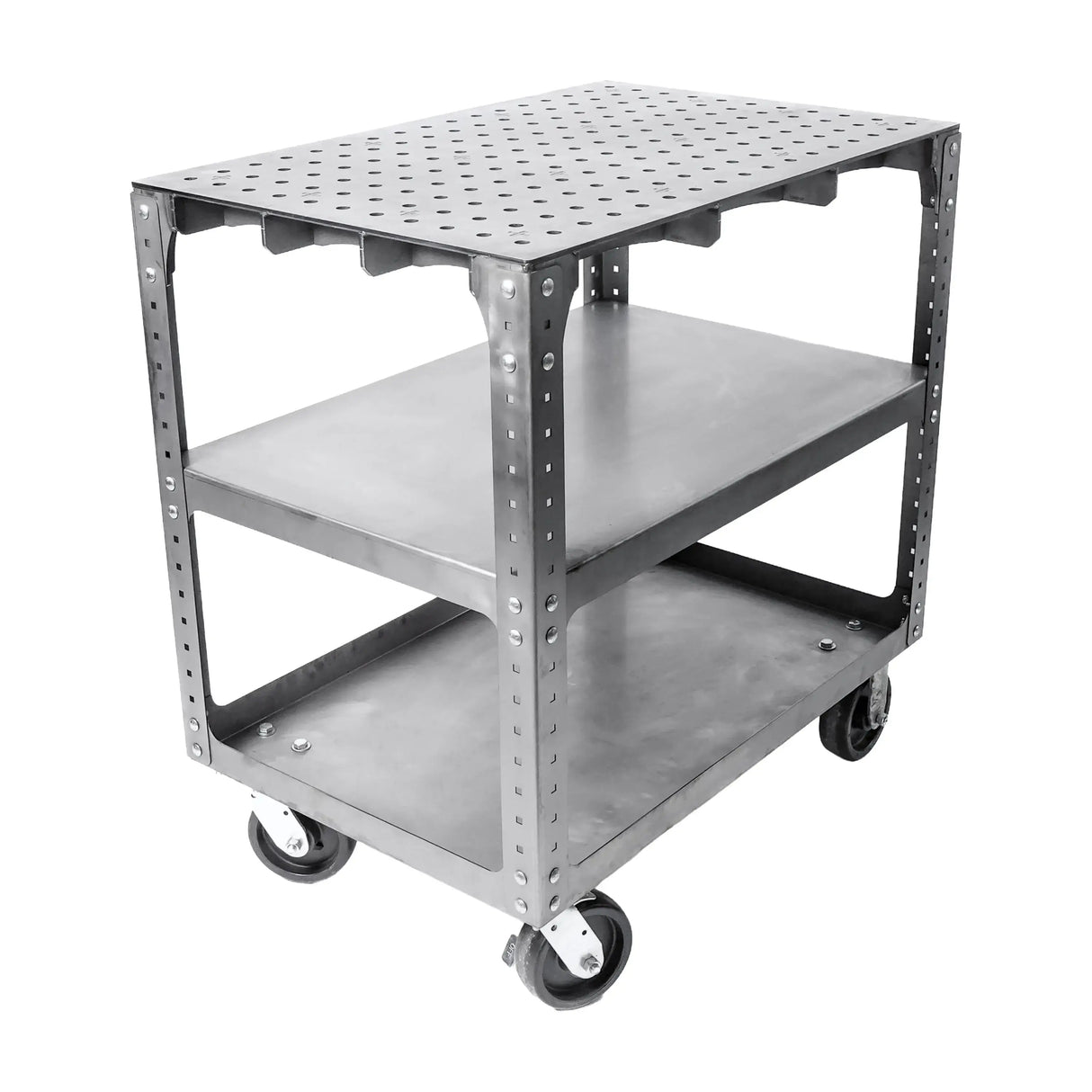

DIY Welding Cart 24"x36" – Build It Once, Use It Forever

Pro-Level Fabrication Table for Your Garage

Take your fab lab to the next level with our DIY Welding Cart Kit. We built this with the DIY guy in mind—using A36 3/16" P&O steel, laser-cut and ready to assemble. The keyway design lines up each piece accurately during assembly, so there's no second-guessing or fiddling around to get it square. Once it's tacked and stitch-welded, the structure becomes incredibly rigid with minimal welding. That rigidity is key to keeping the surface flat and warp-resistant.

Key Features

• Part Number: R2869-kit-2
• Made from A36 3/16" pickled & oiled steel

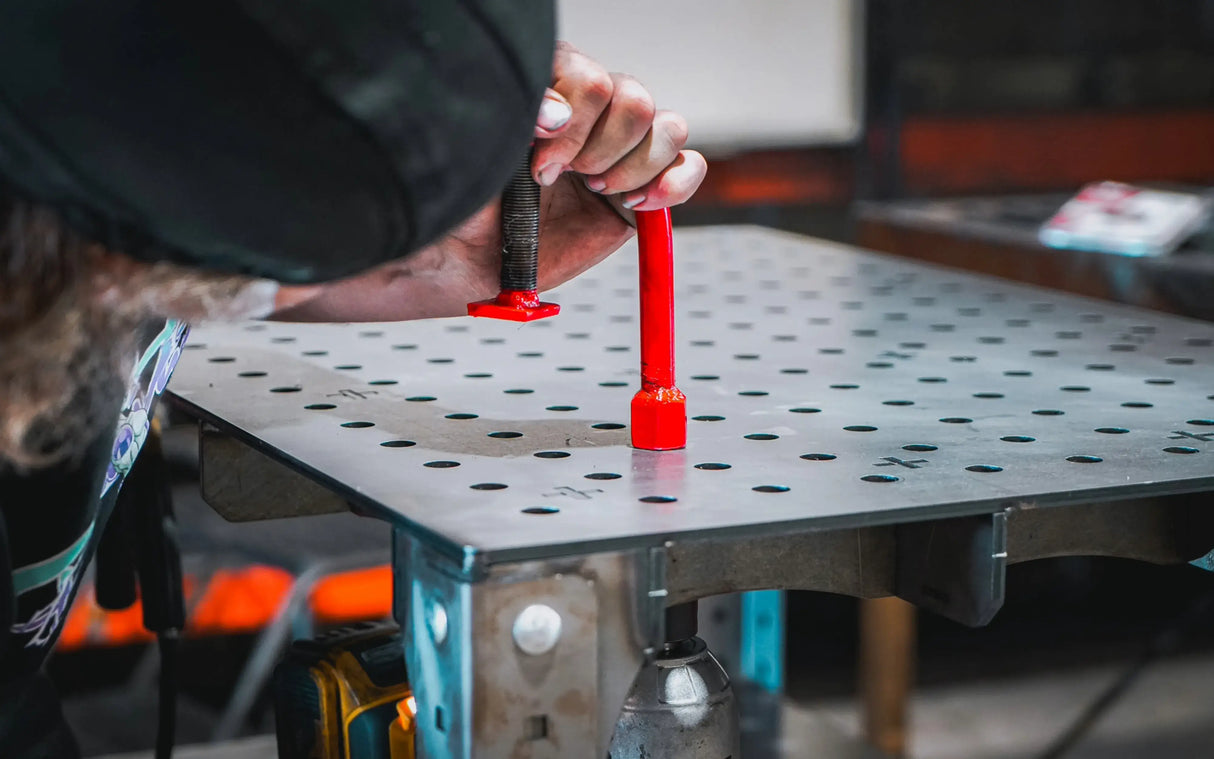

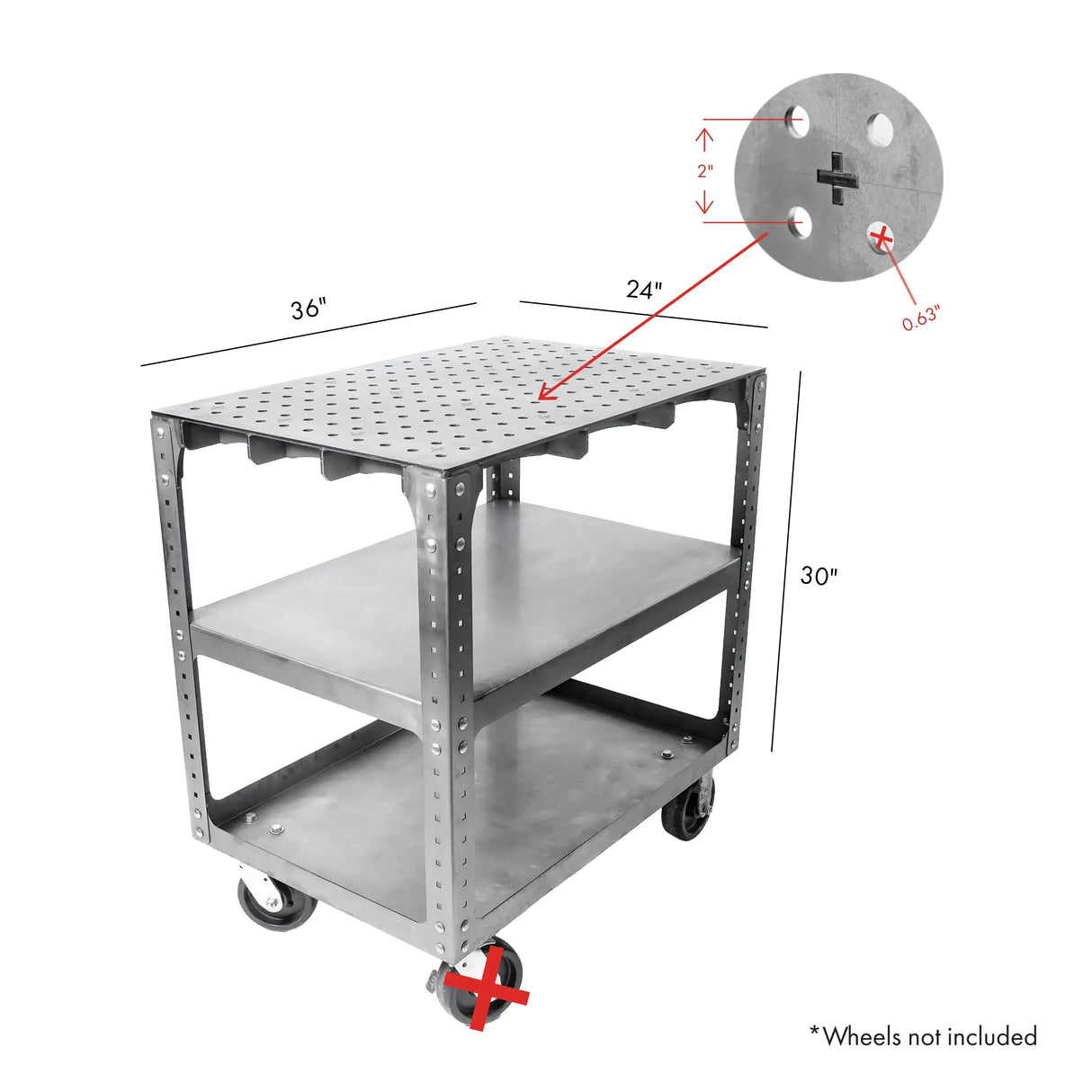

• 16mm (.63") holes on 2" centers

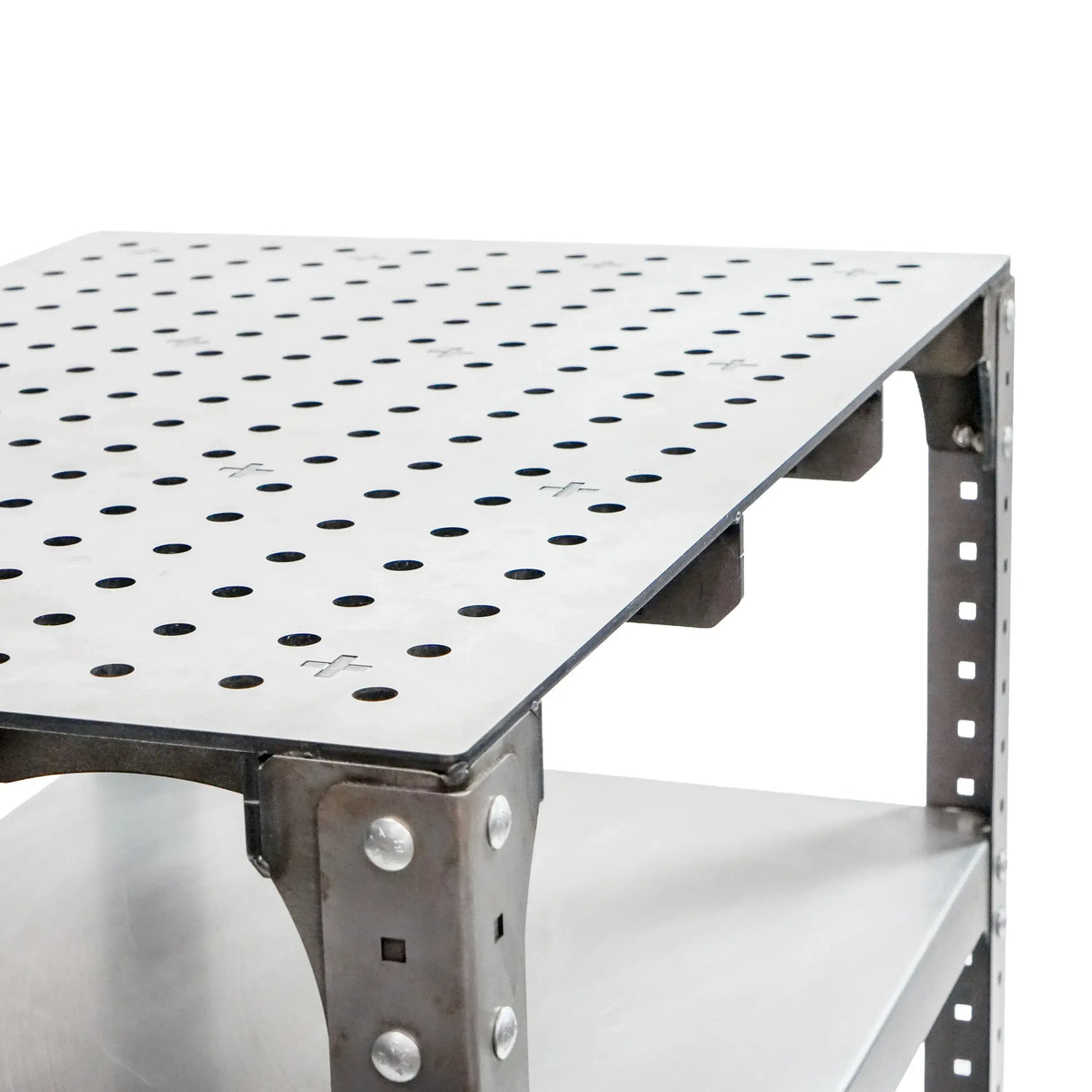

• Laser-etched 2" layout grid for fast, accurate setups

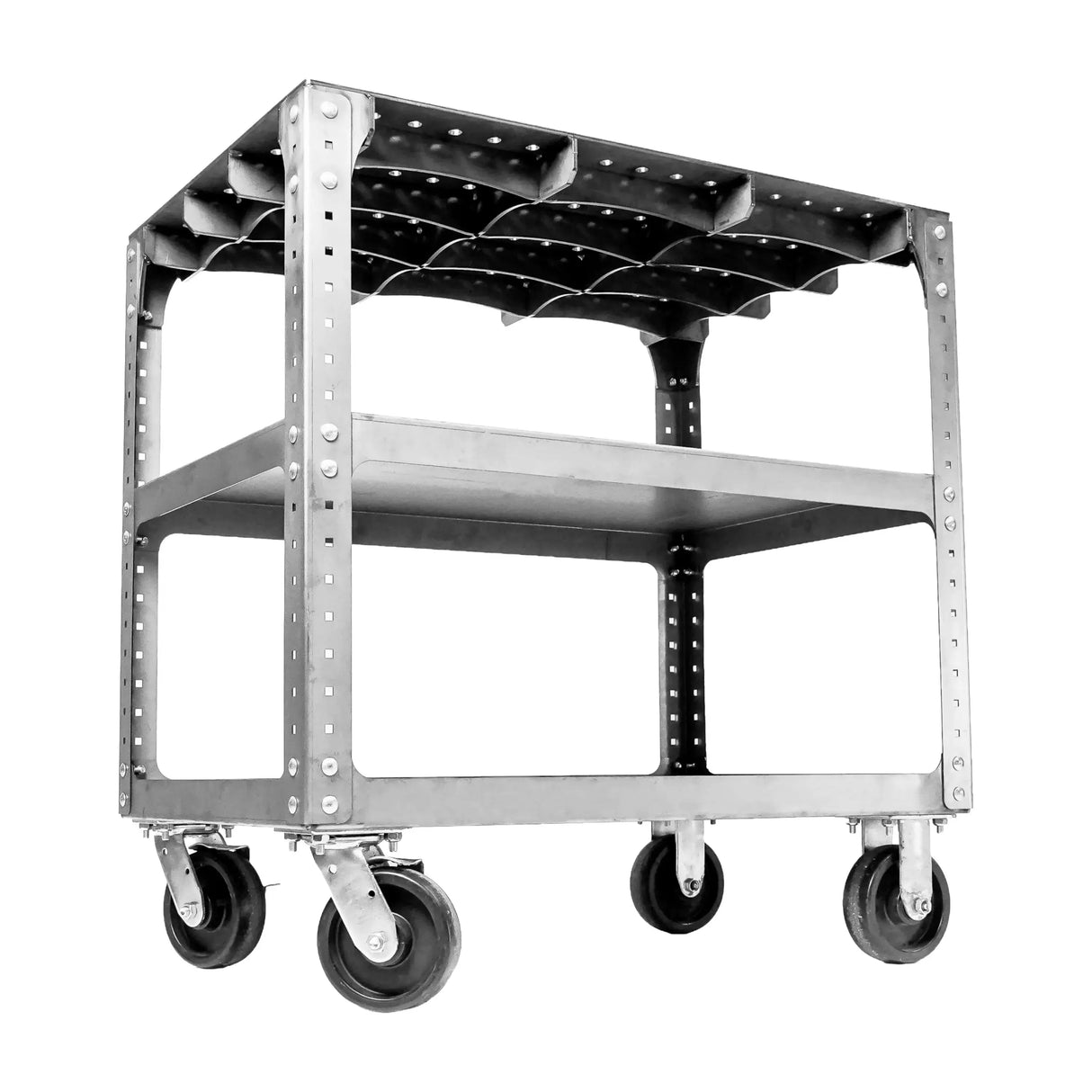

• Self-aligning keyways – fast, square assembly
• Compact 24"x36" footprint – ideal for garages or mobile rigs
• Designed for flatness, rigidity, and minimal distortion

What's Included

• Laser-cut A36 3/16" P&O steel top table with keyway alignment system

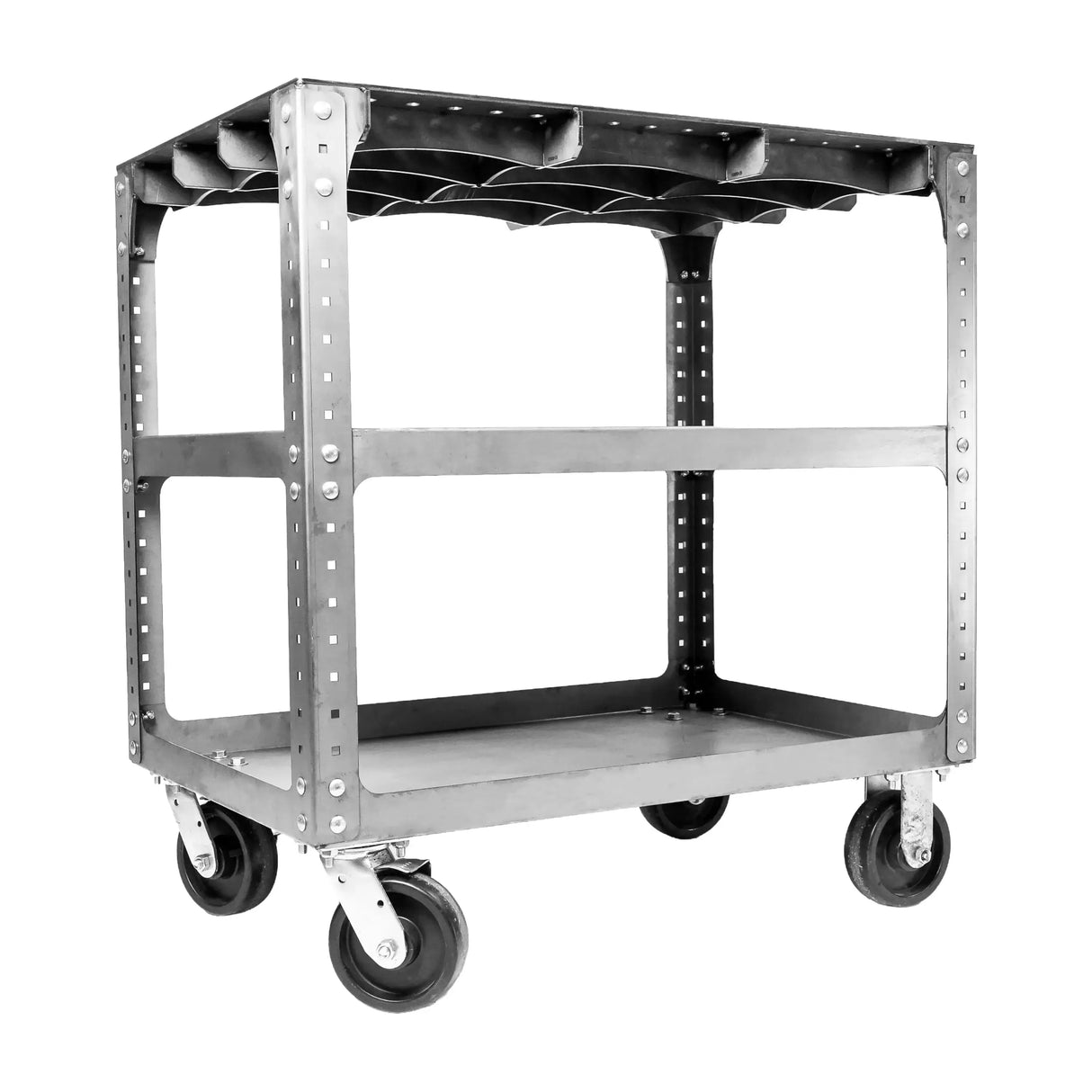

• 14ga. mild steel shelves and legs
• .63" (16mm) holes on 2.00" grid pattern
• Laser-etched 2" visual grid
• CASTERS NOT INCLUDED

Fitment Checklist

• Compatible with most common clamps and fixturing tools on the market
• 24"x36" footprint fits tight shop corners and garage spaces
• Mobile design – rolls where you need it

Tools Required & Install Time

• Welder (MIG or TIG recommended)
• Basic hand tools
• Assembly time: Approximately 2 hours
• No special jigs or fixtures needed

Install Tips

• Tack all joints first before final stitch welding
• Work on a flat surface to maintain table flatness
• Let welds cool naturally to minimize distortion
• The keyway system ensures square alignment – trust the design

Note: Whether you're fabricating parts for your trail rig or working on weekend projects in your garage, this compact table brings pro-level functionality to your home setup—without draining your wallet.
